Highlights:
  • Rack Height: 4U
  • Drive Bays: 72x 2.5" hot-swap drive bays
  • Backplane Support: SAS2/3 or SATA3 HDDs
  • Ports: 4x Mini-SAS HD
Contact sales for pricing

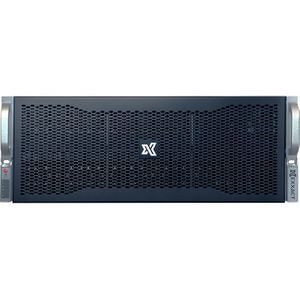

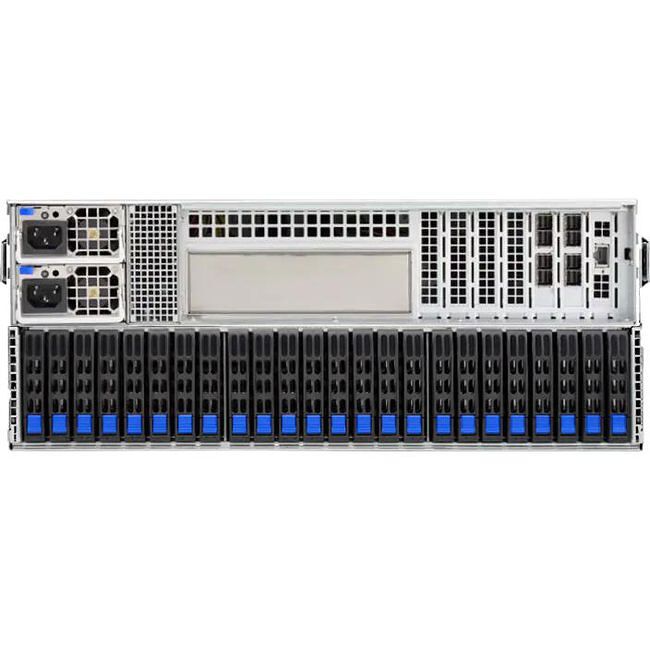

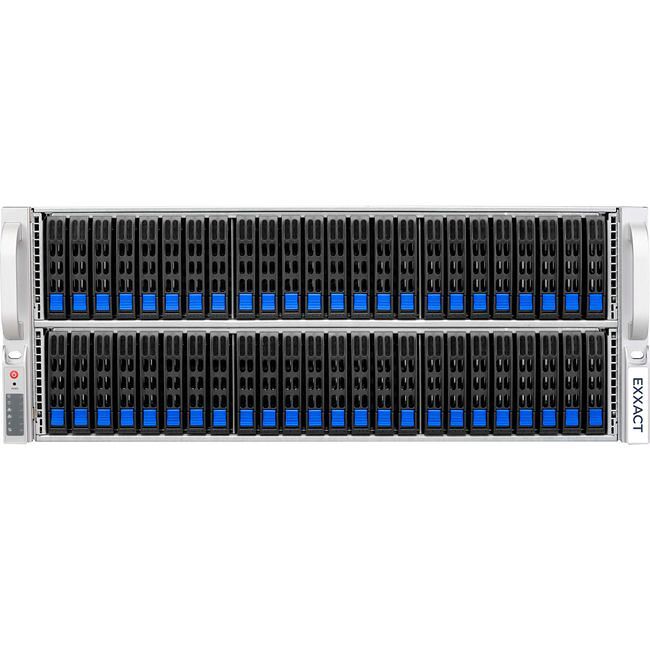

The TensorEX TTJ-1340764 is a 4U rack mountable JBOD chassis supporting 72x 2.5" SATA/SAS hot-swap drives, 4x Mini-SAS HD piorts, and 1200 W redundant power supplies.

Controllers
Non-RAID Mode
JBOD
I/O Expansions
Number of 2.5" Bays
72
Interfaces/Ports
Drive Interface
Mini-SAS
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
1200 W
Certification
80 Plus Titanium
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
4U
Height
7"
Width
17.2"
Depth
27.5"
