Highlights:
- Rack Height: 4U
- Processor Supported: 2x Intel Xeon Scalable Family
- Drive Bays: 24x 2.5" Hot-Swap
- Supports up to 10x Radeon Instinct GPUs

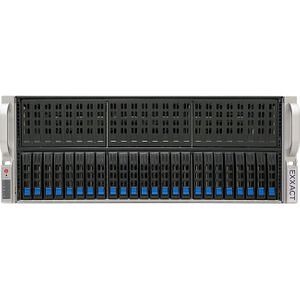

The TensorEX TS4-672702-ARI, featuring ten AMD Radeon Instinct GPUs in a single-root complex, is designed for data scientists, immersion engineers, and product designers.
Features:
- Support 2x Intel Xeon Scalable family Processor
- Support 10x AMD Radeon Instinct GPU in a single-root complex
- 24x DDR4 Memory Slots
- 4U Rackmount
AMD Radeon Instinct GPU Options
| Model | Standard Memory | Memory Bandwidth (GB/s) | Compute Units | Stream Processors | Single Precision (TFLOPS) | Double Precision (TFLOPS) | Power (W) | Explore | |
|---|---|---|---|---|---|---|---|---|---|
 | Radeon Instinct MI50 32 GB | 32 GB HBM2 | 1000 | 60 | 3840 | 13.3 | 6.6 | 300 | Specs |
| Radeon Instinct MI50 16 GB | 16 GB HBM2 | 1000 | 60 | 3840 | 13.3 | 6.6 | 300 | Specs |
 | Radeon Instinct MI25 16 GB | 16 GB HBM2 | 484 | 64 | 4096 | 12.29 | .768 | 300 | Specs |
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Number of UPI links
3
Thermal Design Power (TDP)
205 W
Chipset Manufacturer
Intel
Chipset Model
C622
Memory
Maximum Memory
1.5 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
24
Controllers
SATA3
- Via C622 chipset
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
- 10GBASE-T
I/O Expansions
PCI Express
- 11x PCI-E 3.0 x16 slots (Supports 10x double-wide cards)
- 1x PCI-E 3.0 x8 (in x16 slots)
- Single root complex
Drive Bays
Hot-swap
- 24x 2.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
Number of SATA Interfaces
10
LAN
- 2x RJ45 10GBASE-T Ethernet LAN Ports
- 1x RJ45 IPMI dedicated LAN Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes (2+2)
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.2"
Depth
29"
