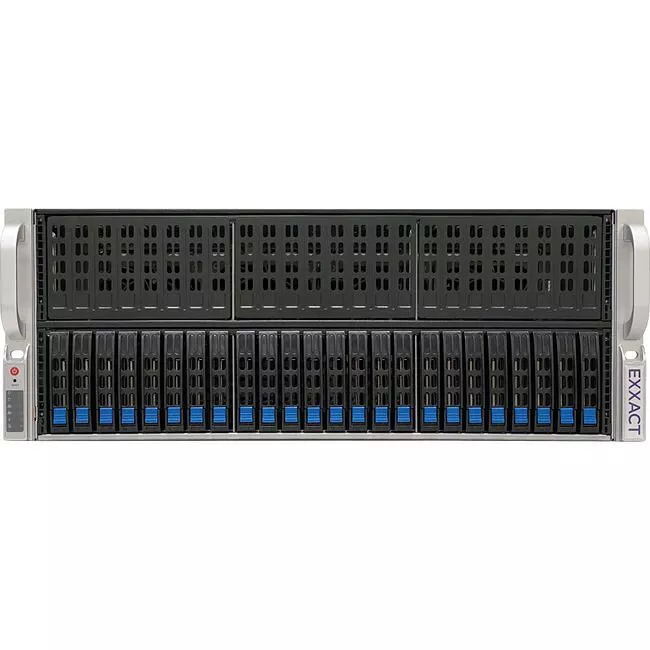

The TensorEX TS4-672693 is a 4U rack mountable server supporting 2x Intel Xeon Scalable processors and a maximum of 3 TB DDR4 memory.
About
The TensorEX TS4-672693 is a 4U rack mountable server supporting 2x Intel Xeon Scalable processors and a maximum of 3 TB DDR4 memory.
Specifications
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Number of UPI links
3
Thermal Design Power (TDP)
N/A
Chipset Manufacturer
Intel
Chipset Model
C622
Memory
Maximum Memory
3 TB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
24
Controllers
SATA3
- Via C622 chipset
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
- 10GBASE-T
I/O Expansions
PCI Express
- 8x PCI-E 3.0 x16 slots (Supports double-wide cards)
- 2x PCI-E 3.0 x8 (2x in x16 slots)
- 1x PCI-E 3.0 x4 (in x16 slot)
Drive Bays
Hot-swap
- 24x 2.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
Number of SATA Interfaces
10
LAN
- 2x RJ45 10GBASE-T Ethernet LAN Ports
- 1x RJ45 IPMI dedicated LAN Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes (2+2)
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.2"
Depth
29"
