ABOUT

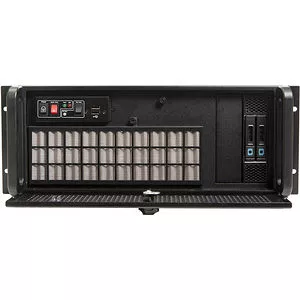

The TensorEX TS4-290876-VWC is a 4U rack mountable server supporting 2x Intel Xeon EC5000 processor and a maximum of 32 GB DDR3 memory. The TensorEX TS4-290876-VWC is an industrial PC incorporating 9 slot PCIe backplane. The switched fabric technology provides 9 x8 lane PCIe slots implemented with x16 physical connectors, with each slot capable of providing up to 8GB/s bi-directional bandwidth.
The flexibility of the Express9-G3 technology allows multiple backplanes to be arranged in a star configuration, providing the ability to create very large systems comprising several chassis each with 9 available slots for video capture inputs and/or graphics outputs, connected via the optional Gen3 expansion kit.
Input/Output Cards:
| Product Name | Description |
|---|---|
| VWX-DP4 | Quad output DisplayPort graphics card |
| VWX-IPDEC | Multi-Channel IP Decoder Card |
| VWX-1HD1SD | Single channel HD, plus single channel SD video capture card |
| VWX-2HD1SD | Four lane PCI Express capture card with 2 x HD DVI-I & 1 x SD channels |
| VWX-3SDI | Four lane PCI Express capture card with 1 x HD DVI-I, SD, SDI channels |
| VWX-1HD | Single channel HD video capture card |
| VWX-2HD | Dual channel HD video capture card |
| VWX-4SD1HD | Video capture card with 4 channels of SD and 1 of HD |
| VWX-8SD | Eight channel SD video capture card |
| VWX-2SDI | Dual channel HD-SDI video capture card |
See More
SPECIFICATIONS
Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 1151
Processor Type
Xeon
Processor Supported
- E3-1200 v5
Thermal Design Power (TDP)
65 W
Chipset Manufacturer
Intel
Chipset Model
Q170
Memory
Maximum Memory
32 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
2
Controllers
SATA3
- Via Q170 chipset
- SW RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
Intel
Graphics Controller Model
HD Graphics P530
Network & Communication
Ethernet Technology
- 1000BASE-T
I/O Expansions
PCI Express
- 11x PCI-E 3.0 x8 (in x16 slots)
Drive Bays
Hot-swap
- 2x 2.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
8
Number of USB 2.0 Ports
6 (2x front, 2x rear, 2x internal)
Number of USB 3.0 Ports
2 (rear)
Number of SATA3 Interfaces
6
LAN
- 2x RJ45 1000BASE-T Ethernet LAN Ports
Onboard Video
- 1x VGA (through DVI-I on rear bracket)
- 1x DVI-D (through DVI-I on rear bracket)
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
800 W
Certification
N/A
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
6.89"
Width
19.0"
Depth
19.69"
