Exxact TensorEX TS4-264516-VWC 4U 1x Intel Core i7 processor server - 9x card video wall controller

MPN: TS4-264516-VWC
Highlights
  • Rack Height: 4U
  • Processor Supported: 1x Intel Core i5/i7
  • Drives: 2x 2.5" SSD
  • 9x PCIe slot Video Wall Controller

We'll get you the best price.

Exxact TensorEX TS4-264516-VWC 4U 1x Intel Core i7 processor server - 9x card video wall controller

MPN: TS4-264516-VWC
Highlights
  • Rack Height: 4U
  • Processor Supported: 1x Intel Core i5/i7
  • Drives: 2x 2.5" SSD
  • 9x PCIe slot Video Wall Controller

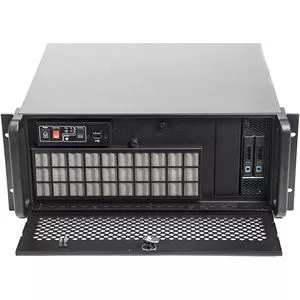

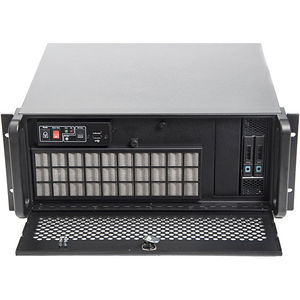

The TensorEX TS4-264516-VWC is a 4U rack mountable Video Wall Controller supporting 1x Intel Core i5/i7 processor and a maximum of 16 GB DDR3 memory. The TensorEX TS4-264516-VWC video wall controller has been designed, developed and optimised to operate with the latest generation of our PCI Express graphics and video capture cards. The graphics cards are PCI Express compatible providing support for HD, SD, DVI and RGB video overlays. They can provide a maximum resolution of 4 x 1920 x 1200 x 32 bit. Video capture cards provide HD capture or HDMI capture capabilities as well as a number of high resolution video capture modes including 3G-SDI, HD-SDI, dual-link DVI, RGB, VGA and Composite; for Analog video and Standard Definition.

The video wall controller is built around an Express9 backplane and SBC2 single board computer. The Express9 features nine slot backplane for flexibility. The SBC2 features an Intel Core i7 2600 processor, 8GB of memory (16GB option available) a full set of I/O and RS232 for automation solutions.

Features:

  • Core i7 processor
  • Supports one PCIe x8 lane slot and eight PCIe x4 lane slots
  • Compatible with Datapath Wall Control software
  • 19" 4U industrial chassis with redundant 500W or single 600W PSU



Input/Output card options:

Product NameDescription
VWX-DP4Quad output DisplayPort graphics card
VWX-IPDECMulti-Channel IP Decoder Card
VWX-1HD1SDSingle channel HD, plus single channel SD video capture card
VWX-2HD1SDFour lane PCI Express capture card with 2 x HD DVI-I & 1 x SD channels
VWX-3SDIFour lane PCI Express capture card with 1 x HD DVI-I, SD, SDI channels
VWX-1HDSingle channel HD video capture card
VWX-2HDDual channel HD video capture card
VWX-4SD1HDVideo capture card with 4 channels of SD and 1 of HD
VWX-8SDEight channel SD video capture card
VWX-2SDIDual channel HD-SDI video capture card
