Exxact TensorEX TS4-264515-VWC 4U 1x Intel Core i7-4770S server - 11x card video wall controller

MPN: TS4-264515-VWC
Highlights
  • Rack Height: 4U
  • Processor Supported: 1x Intel Core i5/i7
  • Drives: 2x 2.5" SSD
  • 11x PCIe Slot Video Wall Controller

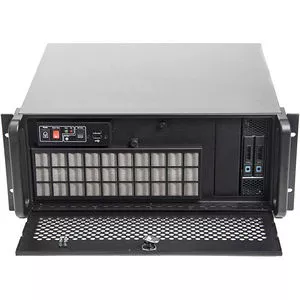

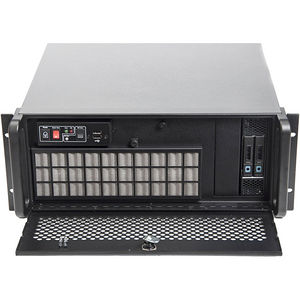

The TensorEX TS4-264515-VWC is a 4U rack mountable Video Wall Controller supporting 1x Intel Core i5/i7 processor and a maximum of 16 GB DDR3 memory. The TensorEX TS4-264515-VWC is an industrial PC incorporating 11 slot PCIe backplane. The switched fabric technology provides 11 x8 lane PCIe slots implemented with x16 physical connectors, with each slot capable of providing up to 8GB/s bi-directional bandwidth.

The flexibility of the Express9-G3 technology allows multiple backplanes to be arranged in a star configuration, providing the ability to create very large systems comprising several chassis each with 11 available slots for video capture inputs and/or graphics outputs, connected via the optional Gen3 expansion kit.

Input/Output card options:

Product NameDescription
VWX-DP4Quad output DisplayPort graphics card
VWX-IPDECMulti-Channel IP Decoder Card
VWX-1HD1SDSingle channel HD, plus single channel SD video capture card
VWX-2HD1SDFour lane PCI Express capture card with 2 x HD DVI-I & 1 x SD channels
VWX-3SDIFour lane PCI Express capture card with 1 x HD DVI-I, SD, SDI channels
VWX-1HDSingle channel HD video capture card
VWX-2HDDual channel HD video capture card
VWX-4SD1HDVideo capture card with 4 channels of SD and 1 of HD
VWX-8SDEight channel SD video capture card
VWX-2SDIDual channel HD-SDI video capture card
