Highlights:
  • Rack Height: 4U
  • Processor Supported: 2x Intel Xeon Scalable Family
  • Drive Bays: 24x 2.5" Hot-Swap
  • Up to 9x Double-Wide cards in a Single-Root System
Contact sales for pricing

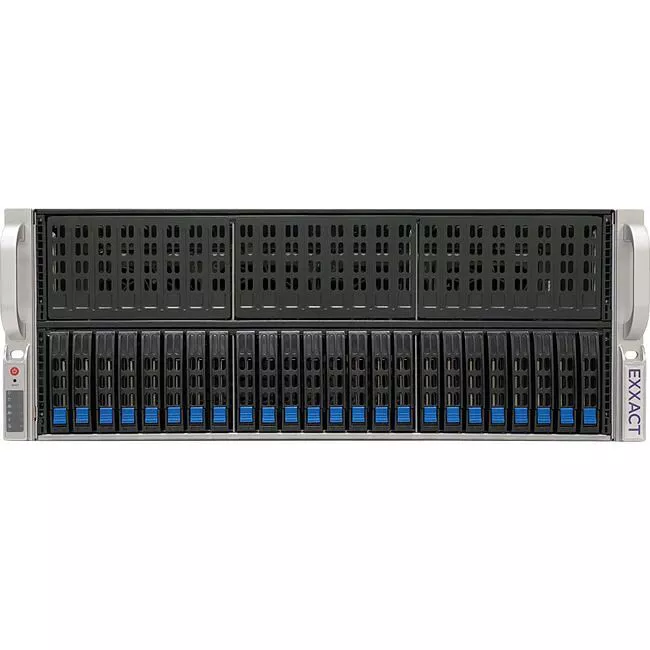

The TensorEX TS4-187485002 is a 4U rack mountable server supporting 2x Intel Xeon Scalable family processor, a maximum of 3 TB DDR4 memory, and support for 9x Double-Wide cards in a Single Root, Cascade Mode system..

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Number of UPI links
3
Thermal Design Power (TDP)
205 W
Chipset Manufacturer
Intel
Chipset Model
C622
Memory
Maximum Memory
3 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
24
Controllers
SATA3
  • Via C622 chipset
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 11x PCI-E 3.0 x16 slots (Supports 9x double-wide cards)
  • 1x PCI-E 3.0 x8 (in x16 slots)
  • Single root complex, Cascade Mode
Drive Bays
Hot-swap
  • 24x 2.5" Hot-swap drive bays
  • 8x 2.5" SAS/SATA supported natively
  • 2x 2.5" NVMe supported natively
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4 (rear)
Number of SATA Interfaces
10
Number of NVMe Interfaces
2
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 IPMI dedicated LAN Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes (2+2)
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.2"
Depth
29"
