Highlights:
  • Rack Height: 4U
  • Processor: 1x Intel Xeon W processor
  • Drive Bays: 8x 3.5" Hot-Swap
  • Supports up to 4x Double-Wide cards
Contact sales for pricing

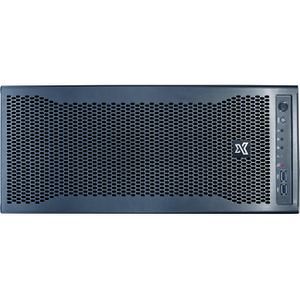

The TensorEX TS4-1735790 is a 4U rack mountable server supporting 1x Intel Xeon W processor and a maximum of 512 GB DDR4 memory.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 2066
Processor Type
  • Xeon
Processor Supported
  • W-21XX
Chipset Manufacturer
Intel
Chipset Model
C422
Memory
Maximum Memory
512 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
8
Controllers
Controller Type
SATA3
RAID Supported
Yes, Intel Rapid Storage Technology
RAID Levels
0, 1, 5, 10
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 7x PCI-E 3.0 x16 slots (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8, supports 4x double-wide cards)
Drive Bays
Hot-Swap
8x 3.5" drive bays
External
3x 5.25" drive bays
Interfaces/Ports
Number of USB 3.1 Ports
  • 6x USB 3.1 Gen 1 (4x rear, 2x mid-board)
  • 3x USB 3.1 Gen 2 (2x rear, 1x mid-board, 1x Type A, 1x Type C)
Number of SATA Interfaces
8
LAN
  • 2x RJ45 10G Ethernet LAN Ports
Power Description
Number of Power Supplies
1
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
1620 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7"
Width
18.2"
Depth
26.5"
