Exxact TensorEX TS4-1709194-VWC 4U 20x Multi-Monitor Card - Video Wall Controller

MPN: TS4-1709194-VWC
Highlights
  • Rack Height: 4U
  • Supports up to 20x Multi-Monitor Cards
  • 1x Mini DisplayPort 1.2 input / 4x Mini HDMI output (per card)
  • HDCP Support

We'll get you the best price.

Exxact TensorEX TS4-1709194-VWC 4U 20x Multi-Monitor Card - Video Wall Controller

MPN: TS4-1709194-VWC
Highlights
  • Rack Height: 4U
  • Supports up to 20x Multi-Monitor Cards
  • 1x Mini DisplayPort 1.2 input / 4x Mini HDMI output (per card)
  • HDCP Support

The Exxact TensorEX TS4-1709194-VWC is a Video Wall Controller supporting up to 20x multi-monitor controller cards. Each multi-monitor controller card is capable of taking 1x input (up to 4K) and outputting it to up to 4x displays. The TensorEX TS4-112494266-VWC provides redundant power, density, flexibility, and scalability for your video wall needs.

additional product information

Complete flexibility

  • Drive up to four pristine quality Full HD displays from a single 4Kp60 video signal at full RGB 8:8:8 and YUV 4:4:4 color support.
  • Expand to a video wall configuration of any size by using multiple multi-monitor controller cards.
  • Create a video wall from any content source, including professional graphics cards and integrated GPUs, video wall controllers, digital signage players, media players, decoders, laptops, NUCs, set-top boxes, gaming consoles, and more.
  • Design modern and artistic video wall layouts with free rein—each output can have its own resolution, be independently rotated (90, 180, and 270 degrees), cropped, upscaled, downscaled, and positioned anywhere.
  • Fashion countless forms of setups—arrange displays in 4x1, 1x4, 2x2, 3x1, 1x3, 2x1, or 1x2 rectangular configurations, in portrait or landscape, or other non-rectangular/artistic configurations—and combine/scale them to create large-scale, captivating video walls.
additional product information

Ease of deployment

  • Simplify installation with guaranteed out-of-the-box plug and play when using the default configuration of 2x2 in landscape—set up without installing software or even connecting a video source.
  • Design any custom configuration/array with the intuitive video wall software.
  • Ensure compatibility with professional-grade graphics cards with native DisplayPort™ 1.2 support—no adapter required.
  • Eliminate physical handling by controlling and updating the cards remotely from anywhere on the network (LAN).
  • Set the display layout by simply selecting any of the pre-set configurations* from the intuitive software interface.

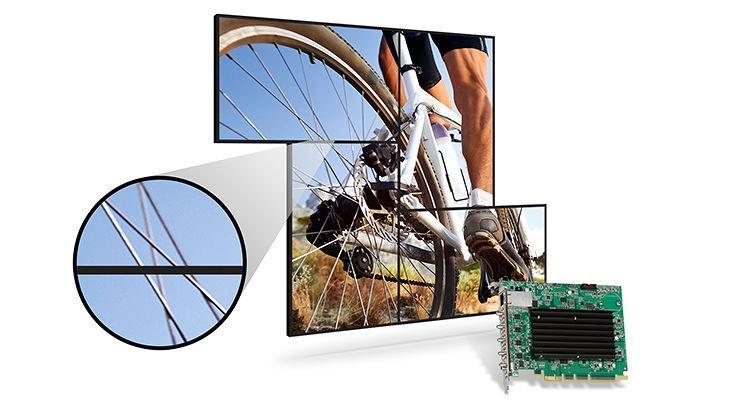

  • Set up display positions, fine tune bezels, and also troubleshoot with ease, by accessing the built-in or pre-saved images, together with display identification information that includes the ID number and the resolution of each output.

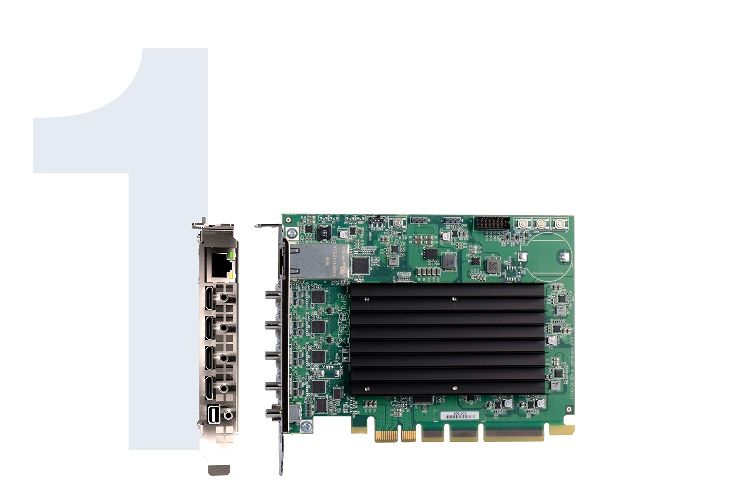

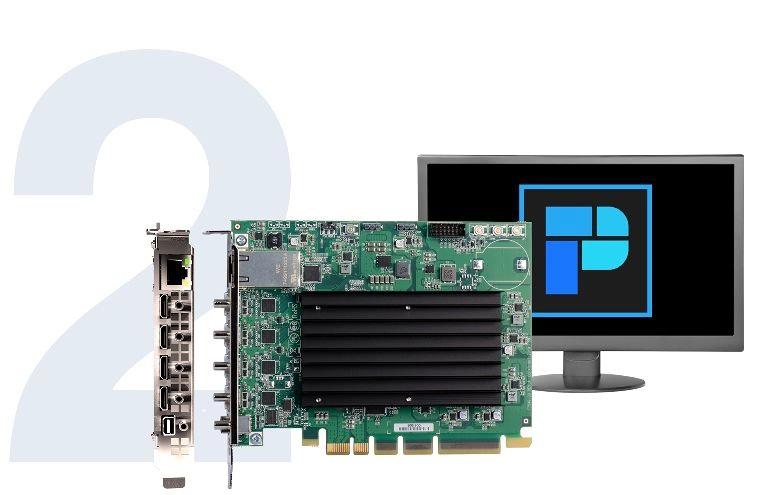

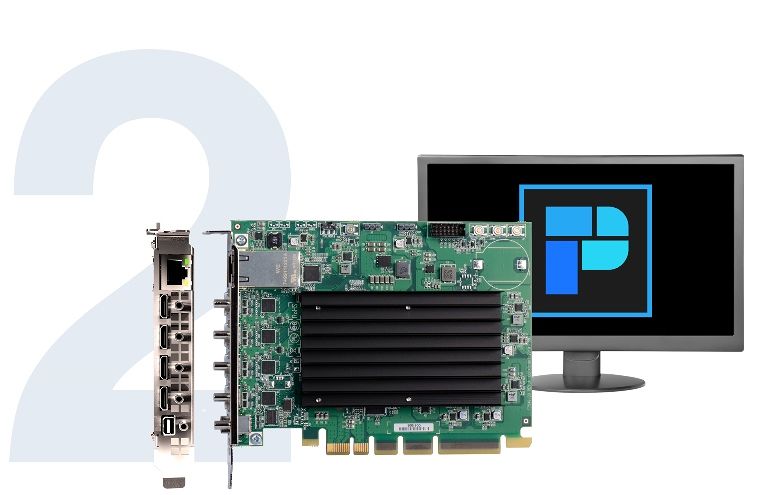

As easy as 1-2-3

https://assets.exxactcorp.com/img/exx/cms/solutions/visualization-and-rendering/video-wall-controllers/Multi-Monitor/Quad_setup_easy_step_1_board.jpg
https://assets.exxactcorp.com/img/exx/cms/solutions/visualization-and-rendering/video-wall-controllers/Multi-Monitor/Quad_setup_easy_step_2_board.jpg
https://assets.exxactcorp.com/img/exx/cms/solutions/visualization-and-rendering/video-wall-controllers/Multi-Monitor/Quad_setup_3.png

Dynamic and scalable configurations

https://assets.exxactcorp.com/img/exx/cms/solutions/visualization-and-rendering/video-wall-controllers/Multi-Monitor/Quad_setup_fine_tune_bezel_management.jpg

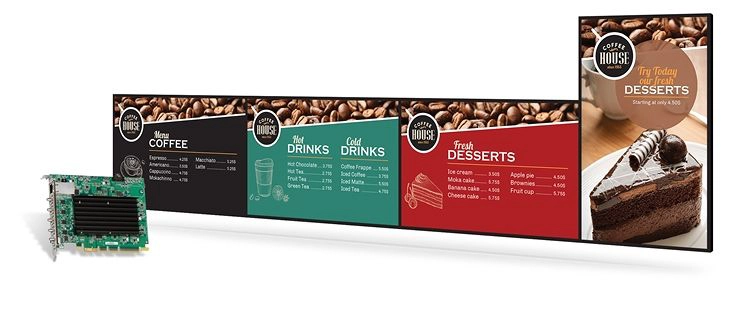

https://assets.exxactcorp.com/img/exx/cms/solutions/visualization-and-rendering/video-wall-controllers/Multi-Monitor/Quad_coffee_setup_card.jpg

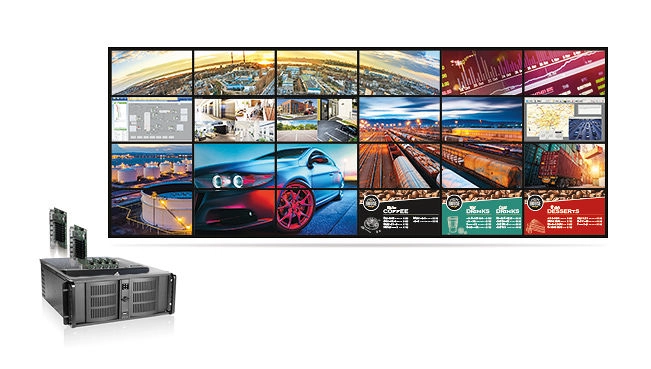

https://assets.exxactcorp.com/img/exx/cms/solutions/visualization-and-rendering/video-wall-controllers/Multi-Monitor/Quad_cards_video_wall.jpg
