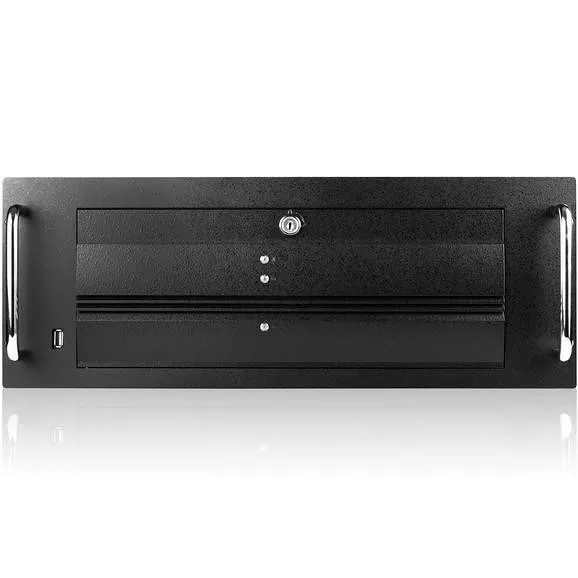

The TensorEX TS4-1642646 is a 4U rack mountable server supporting 1x Intel Core X-Series processor and a maximum of 256 GB DDR4 memory.
About
The TensorEX TS4-1642646 is a 4U rack mountable server supporting 1x Intel Core X-Series processor and a maximum of 256 GB DDR4 memory.
Specifications
Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 2066
Processor Type
- Core X-Series
Processor Supported
- Core i5
- Core i7
- Core i9
Chipset Manufacturer
Intel
Chipset Model
X299
Memory
Maximum Memory
- 256 GB (8-Core and above CPU)
- 64 GB (4-Core CPU)
- Core i9
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
8
Controllers
Controller Type
SATA3
RAID Supported
Yes, Intel Rapid Storage Technology
RAID Levels
0, 1, 5, 10
Network & Communication
Ethernet Technology
1000BASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
- 7x PCI-E 3.0 x16 slots (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8, supports 4x double-wide cards)
Drive Bays
Internal
2x 3.5" drive bays
External
3x 5.25" drive bays
Interfaces/Ports
Total Number of USB Ports
15
Number of USB 3.1 Ports
11 (8x rear, 3x header)
Number of USB 2.0 Ports
4 (rear)
Number of SATA Interfaces
8
NVMe
- 1x M.2 PCIe 3.0 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage device
- 1x M.2 PCIe 3.0 x4 Socket 3, with M key, type 2242/2260/2280 storage device
- 2x U.2 connector
LAN
- 2x RJ45 Gigabit Ethernet LAN Ports
Power Description
Number of Power Supplies
1
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
1000 W
Certification
80 Plus Gold
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
6.97"
Width
19.00"
Depth
15.00"
