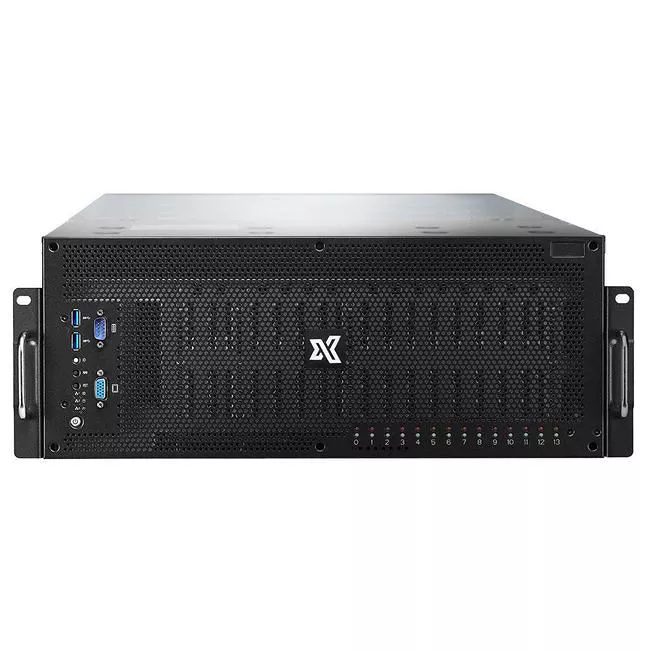

Exxact TensorEX TS4-1598415-REL 4U 2x Intel Xeon Scalable family - Relion for Cryo-EM Solution

MPN # TS4-1598415-REL
Highlights:
  • Rack Height: 4U
  • Processor Supported: 2x Intel Scalable Family
  • Drive Bays: 14x 2.5" Hot-Swap
  • Supports up to 8x Double-Wide cards
Contact sales for pricing

The TensorEX TS4-1598415-REL is a 4U rack mountable server supporting 2x Intel Xeon Scalable Family processors and a maximum of 1.5 TB DDR4 memory. It is specced to provide maximum GPU-accelerated performance for Relion 2.0 users. It features the most of up-to-date Relion software.

RELION for Cryo-EM system highlights:

  • Optimized for Cryo-EM
  • Supports up to 2x Intel Xeon Scalable family Processors
  • Supports 8x Double Width GPUs
  • Up to 1.5TB DDR4 ECC Registered memory (RDIMM), up to 2400 MHz
  • 4U Rackmount

Software:

  • CentOS 7
  • Relion 3
  • Motioncorr
  • MotionCor2
  • Gctf v1.06
  • CTFFind4.1.10
  • ResMap v1.1.4
  • CUDA Toolkit v9.2
  • MPICH v3.2.1
  • Chimera v1.13
  • Evince
  • FFTW3
  • IMOD v4.9.9
  • Gnuplot
  • Summovie v1.0.2
  • Unblur v1.0.2
  • EMAN v2.21
Relion for Cryo-EM Solutions

LEARN MORE
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
1.5 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
24
Controllers
SATA3
  • Via C621 chipset
  • Intel RST RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 9x PCI-E 3.0 x16 slots (supports 8x double-wide cards)
  • 2x PCI-E 3.0 x8 slots (for mezzanine)
Drive Bays
External
14x 2.5" hot-swap drive bays
Interfaces/Ports (per node)
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (front)
Number of SATA Interfaces
14
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
3
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
3200 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
6.93"
Width
17.24"
Depth
30.31
