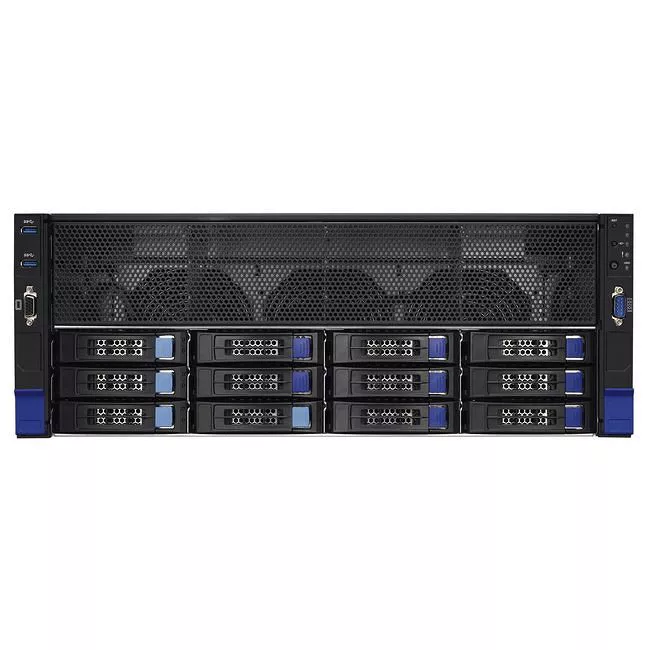

The TensorEX TS4-156862753 is a 4U server supporting 2x Intel Xeon processor Scalable family and a maximum of 3 TB DDR4 memory.
About
The TensorEX TS4-156862753 is a 4U server supporting 2x Intel Xeon processor Scalable family and a maximum of 3 TB DDR4 memory.
Specifications
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
3 TB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
24
Controllers
SATA3
- Via C621 chipset
- Intel RST RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
- 10GBASE-T
I/O Expansions
PCI Express
- 10x PCI-E 3.0 x16 slots (supports 10x double-wide cards in a single-root complex)
- 1x PCI-E 3.0 x16 slot
Drive Bays
External
12x 3.5" hot-swap drive bays (4x NVMe)
Interfaces/Ports (per node)
Total Number of USB Ports
4
Number of USB 3.0 Ports
4 (2x front, 2x rear)
Number of SATA Interfaces
12
Number of NVMe Interfaces
4
LAN
- 2x RJ45 10GBASE-T Ethernet LAN Ports
Onboard Video
1x VGA Connector
Serial/COM
1x DB-9 COM port
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
4800 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
6.9"
Width
17.26"
Depth
32.68
