Highlights:
- Rack Height: 4U
- Processor: 2x AMD EPYC 7002-Series
- Drive Bays: 12x 3.5", 10x 2.5" Hot-Swap
- Supports up to 10x Double-Wide cards

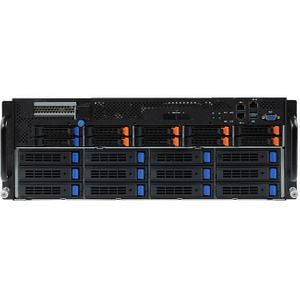

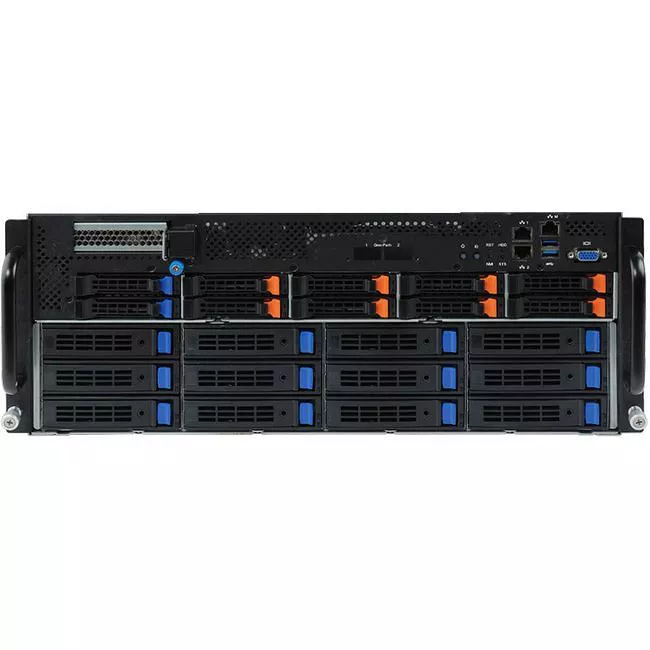

The TensorEX TS4-145696608 is a 4U rack mountable server supporting 2x AMD EPYC 7002-Series processor, a maximum of 4 TB DDR4 memory, and up to 10x Double-Wide cards.
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket SP3
Processor Type
EPYC
Processor Supported
- 7002-Series
Thermal Design Power (TDP)
225 W
Memory
Maximum Memory
4 TB
Memory Technology
- DDR4 SDRAM
Memory Standard
DDR4-3200/PC4-25600
Number of Total Memory Slots
32
Controllers
SATA3
- Via first CPU
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
- 10GBASE-T
I/O Expansions
PCI Express
- 10x PCI-E 4.0 x16 slots (Supports 10x double-wide cards)
- 2x PCI-E 4.0 x16 slot (Front, Rear, Low-Profile, Half-Length)
Drive Bays
Hot-swap
- 12x 3.5" Hot-swap SATA drive bays
- 10x 2.5" Hot-swap SATA drive bays
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (Front)
Number of SATA Interfaces
22
LAN
- 2x 10GBASE-T RJ45 Ports (Rear)
- 1x RJ45 Management LAN Port (Rear)
- 2x 1000BASE-T RJ45 Port (Front)
Onboard Video
1x VGA Connector (Front)
Power Description
Number of Power Supplies
3
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
6.93"
Width
17.64"
Depth
34.65"
