Highlights:
  • Rack Height: 2U
  • Number of Nodes: 4
  • Processor Supported (Per Node): 2x Intel Xeon Scalable Family
  • Drive Bays: 3x 3.5" Hot-Swap
Contact sales for pricing

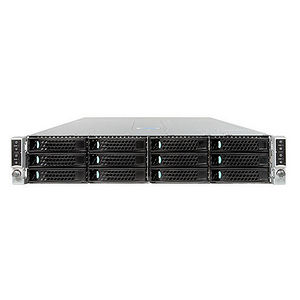

The TensorEX TS2-678918-ISS is designed for workloads with compute intensive, high density requirements in the HPC market. The TensorEX TS2-678918-ISS features four Intel® Compute nodes, each with support for the Intel® Xeon® processor Scalable family. The Intel® Omni-Path Fabric CPU offers up to 100 Gbps per port of bandwidth, delivering performance that scales with high node and core counts. The hot-swappable compute nodes, optional storage configurations, and redundant power supply modules offer easy serviceability.

Features:

Intel Xeon Scalable Solutions

Processor & Chipset
Number of Nodes
4
Number of Processors Supported (per node)
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Silver 41XX
  • Gold 51XX
  • Gold 61XX
  • Gold 61XXF
  • Platinum 81XX
  • Platinum 81XXF
  • Bronze 32XX
  • Silver 42XX
  • Gold 52XX
  • Gold 62XX
  • Platinum 82XX
Number of QPI links
2
Thermal Design Power (TDP)
135 W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory (per node)
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
16
Controllers (per node)
SATA3
  • Via C621 chipset
  • RAID 0, 1, 5, 10, 50 (LSI)
Optional Bridge Board Controllers
  • SATA
  • SAS RAID, 3008
  • SAS RAID 5, 3008
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions (per node)
PCI Express
  • 2x PCI-E 3.0 x16 slots (Low-profile)
M.2
  • 1x 42mm M.2 SATA/PCI-E x4 Slot
Drive Bays (per node)
Hot-swap
  • 4x 3.5" Hot-swap drive bays
Interfaces/Ports (per node)
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (rear)
Number of SATA Interfaces
8
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 IPMI dedicated LAN Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2130 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.42"
Width
17.24"
Depth
30.35"
