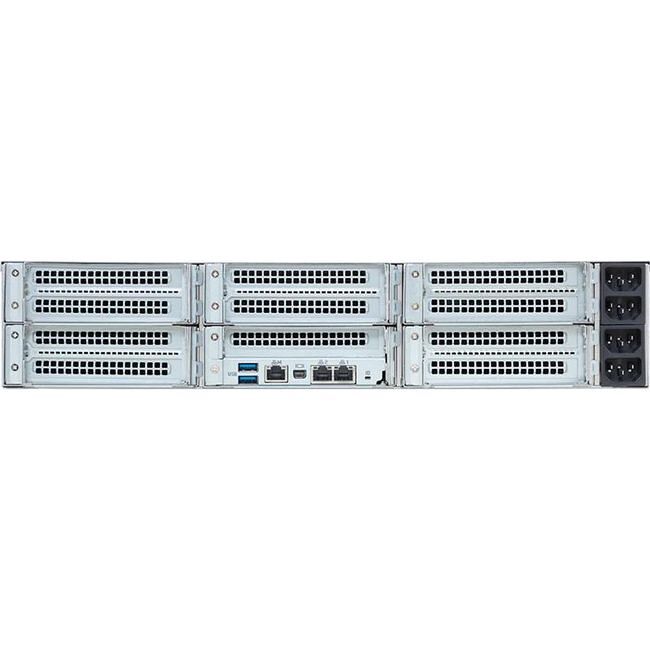

Exxact TensorEX 2U NVIDIA MGX™ Server - 2x Intel Xeon 6900P/6900E+ Series - TS2-166421536
The TensorEX TS2-166421536 is a 2U NVIDIA MGX™ Server supporting 2x Intel Xeon 6900P/6900E+ Series processors and 24x DDR5 memory slots.
Intel Xeon 6+ 6900E Series Processors
Maximum E-Core Density for Cloud-Native Infrastructure
Intel Xeon 6+ series processors deliver next-generation Efficient-core density for hyperscale, cloud-native, and massively parallel data center workloads. Intel Xeon 6+ scales to flagship 6900E+ SKUs with up to 288 E-cores per socket, improved performance per watt, expanded cache, and high-bandwidth DDR5 memory support for dense virtualization, microservices, networking, and AI agent infrastructure.
- 17% IPC with new Darkmont Cores versus last generation Crestmont Cores.
- Up to 288 E-cores per socket with up to 576MB last-level cache (2x cores & 5x cache)
- 12-channel DDR5 memory support up to 8000 MT/s (25% faster)
- 96 PCIe 5.0 lanes and 64 CXL 2.0 lanes for accelerator, storage, and memory expansion
- Socket compatible with existing Intel Xeon 6 6900P & 6900E platforms (LGA-7529) for simple upgradability for exceptional density and hardware consolidation
Configure this Platform or Contact Sales for Compatibility
Model | Host Interface | Standard Memory | Memory Bandwidth | CUDA Cores | Tensor Cores | Single Precision (TFLOPS) | Double Precision (TFLOPS) | AI Performance | Power |
|---|---|---|---|---|---|---|---|---|---|
| RTX PRO 6000 Blackwell Server | PCIe 5.0 x16 | 96 GB GDDR7 ECC | 1.6 TB/s | 24064 | 752 | 120 | 1.97 | 4000 TOPS (FP4) | Up to 600 W |
| H200 NVL | PCIe 5.0 x16 | 141 GB HBM3e | 4.8 TB/s | 16896 | 528 | 60 | 30.2 | 3,341 TFLOPS (FP8) | Up to 600 W |
| H100 | PCIe 5.0 x16 | 80 GB HBM2e | 2 TB/s | 14592 | 456 | 51 | 25.6 | 3,341 TFLOPS (FP8) | Up to 400 W |
| L40S | PCIe 4.0 x16 | 48 GB GDDR6 | 864 GB/s | 18176 | 568 | 92 | 1.41 | 1,466 TFLOPS (FP8) | 300W |
| L40 | PCIe 4.0 x16 | 48 GB GDDR6 | 864 GB/s | 18176 | 568 | 91 | 1.41 | 724 TFLOPS (FP8) | 300W |
| L4 | PCIe 4.0 x16 | 24 GB GDDR6 | 300 GB/s | 7424 | 240 | 30 | 0.47 | 485 TFLOPS (FP8) | 72W |
