Highlights:
  • Rack Height: 2U
  • Processor: 2x AMD EPYC 7002 Series
  • Drive Bays: 8x 3.5" Hot-swap drives
  • Supports 4x PCI-E 4.0 x16 Double-Wide cards
Contact sales for pricing

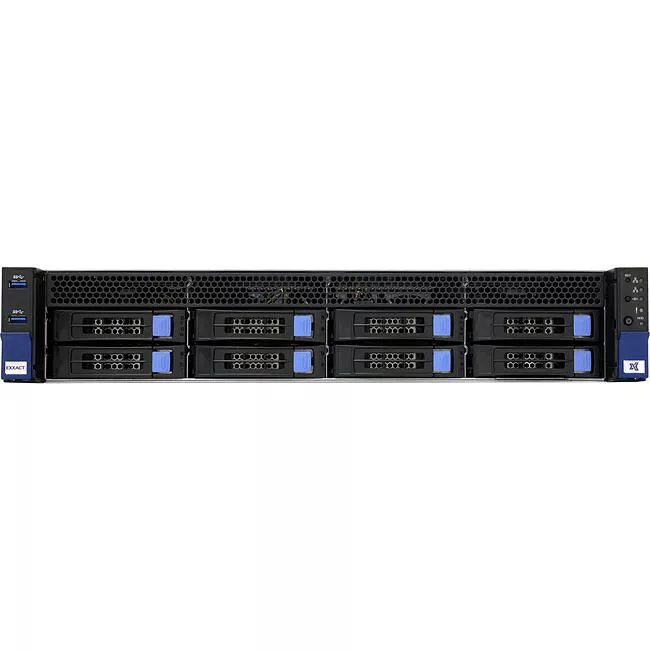

The TensorEX TS2-158632687-AES is a 2U rack mountable server supporting 1x AMD EPYC 7002-Series processor, a maximum of 1 TB DDR4 memory, and up to 4x PCI-E 4.0 x16 Double-Wide cards.

AMD EPYC™ 7002 Series Processor (Rome)

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability – designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.


  • Built on 7nm advanced process technology – the best the industry has to offer, allowing for denser compute capabilities with lower power consumption.
  • The world’s first 64 core data center CPU, built using Zen 2 high performance cores and AMD’s innovative chiplet architecture.
  • The world’s first mainstream PCIe Gen 4.0 data center CPU with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0.
  • Embedded security protection to help defend your CPU, applications, and data.
  • Up to 2X Performance Per Socket & IO Bandwidth vs AMD EPYC Naples.
  • Up to 4X Floating Point Per Socket vs AMD EPYC Naples.
EPYC 7002

Discover the new leader in data center performance.


See the new standard with AMD EPYC 7002 servers and workstations.


Learn More
EPYC Bandwidth Chart

PCIe Gen 4.0 Ready

AMD EPYC Rome is the world’s first mainstream data center CPU to support PCIe Gen 4.0, with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. Exxact’s AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices such as AMD’s Radeon MI50 GPGPU.

* The PCIe 4.0 standard supports a 16 GT/s bit rate, (roughly 2GB/s per single lane) as opposed to 8GT/s bit rate for PCIe 3.0 (1GB/s).
EPYC Speed Chart

Higher Memory Speed

AMD EPYC’s Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)

See the new processor standard for innovation.


Raise expectations for your data center.


Learn More
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket SP3
Processor Type
  • EPYC
Processor Supported
  • 7002 Series
Thermal Design Power (TDP)
Up to 200W
Chipset Manufacturer
Intel
Chipset Model
SoC
Memory
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-3200/PC4-25600
Number of Total Memory Slots
16
Controllers
Controller Type
SATA3
RAID Supported
No
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RF45) Ports
2
I/O Expansions
PCI Express
  • 4x PCI-E 4.0 x16 slots (Double-Wide card support)
  • 4x PCI-E 4.0 x8 slots (Full-Height, Full-Length)
  • 2x PCI-E 4.0 x16 slots (Low-Profile)
Drive Bays
Hot-Swap
  • 8x 3.5" Hot-Swap Drive Bays
Interfaces/Ports
Total Number of USB 3.1 Ports
5 (2x front, 2x rear, 1x Type A)
Number of SATA Interfaces
8
Number of NVMe Interfaces
8
LAN
  • 2x 10GBASE-T Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
  • 1x VGA
Serial Port / Header
1 (header)
DOM
2 Disk on Module port
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.43"
Width
17.25"
Depth
32.71"
