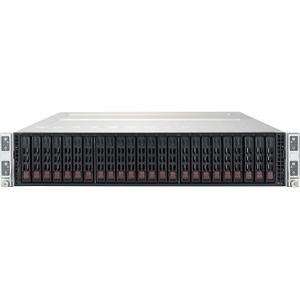

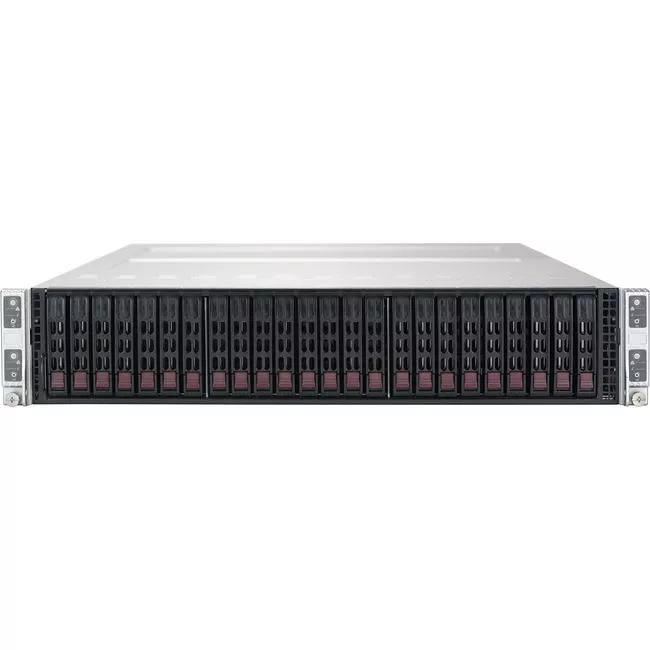

The TensorEX TS2-154848678 is a 2U 4x node rack mountable server, each node supporting 2x Intel Xeon Scalable family processor and a maximum of 2 TB DDR4 memory.
About
The TensorEX TS2-154848678 is a 2U 4x node rack mountable server, each node supporting 2x Intel Xeon Scalable family processor and a maximum of 2 TB DDR4 memory.
Specifications
Processor & Chipset
Number of Nodes
4
Number of Processors Supported (per node)
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Silver 41XX
- Gold 51XX
- Gold 61XX
- Gold 61XXF
- Platinum 81XX
- Platinum 81XXF
- Bronze 32XX
- Silver 42XX
- Gold 52XX
- Gold 62XX
- Platinum 82XX
Number of QPI links
2
Thermal Design Power (TDP)
205 W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory (per node)
Maximum Memory
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
16
Controllers (per node)
SATA3
- Via C621 chipset
- RAID 0, 1, 5, 10
Network & Communication
SIOM Networking Options
- 2x 1000BASE-T RJ45 Ports
- 4x 1000BASE-T RJ45 Ports
- 2x 10G SFP+ Ports
- 4x 10G SFP+ Ports
- 2x 10GBASE-T RJ45 Ports
- 4x 10GBASE-T RJ45 Ports
- 2x 25GbE SFP28 & 2x 10GBASE-T RJ45 Ports
- 2x 25GbE SFP28 Ports
- 2x IB FDR QSFP & 2x 1000BASE-T RJ45 Ports
- 1x IB FDR QSFP & 2x 1000BASE-T RJ45 Ports
- 1x IB EDR QSFP28 & 1x 1000BASE-T RJ45 Ports
- 1x 100G Omni-Path QSFP28 Port
I/O Expansions (per node)
PCI Express
- 2x PCI-E 3.0 x16 slots (Low-profile)
Drive Bays (per node)
Hot-swap
- 6x 2.5" Hot-swap drive bays
Interfaces/Ports (per node)
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (rear)
Number of SATA Interfaces
6
LAN
- 1x RJ45 IPMI dedicated LAN Port
Onboard Video
1x VGA Connector
DOM
1x Disk on Module port
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.47"
Width
17.25"
Depth
28.5"
