The TensorEX TS2-146574195 is a 2U rack mountable server supporting 2x AMD EPYC 9005/9004 Series processors and 24x DDR5 memory slots.
About
The TensorEX TS2-146574195 is a 2U rack mountable server supporting 2x AMD EPYC 9005/9004 Series processors and 24x DDR5 memory slots.
Specifications
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket SP5 LGA-6096
Processor Type
EPYC
Processor Supported
- 9005-Series
- 9004-Series
Thermal Design Power (TDP)
360 W (Over 210W with conditional support)
Chipset Manufacturer
N/A
Chipset Model
SoC
Memory
Maximum Memory
12 TB
Memory Technology
- DDR5 SDRAM
Memory Standard
- DDR5-4800/PC5-38400
Number of Total Memory Slots
24
Controllers
SATA3/NVMe
- Via SoC
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2600
I/O Expansions
PCI Express
- 2x PCI-E 5.0 x16 or 1x PCI-E 5.0 x16 + 2x PCI-E 5.0 x8 FHHL slots
- 2x PCI-E 5.0 x16 or 1x PCI-E 5.0 x16 + 2x PCI-E 5.0 x8 FHHL slots
- 1x PCI-E 5.0 x16 or 2x PCI-E 5.0 x8 HHHL slots
- 1x PCI-E 5.0 x16 OCP3.0 slots
- 1x PCI-E 3.0 x4 M.2 slots (2230/2242/2260/2280)
- 1x PCI-E 3.0 x4 M.2 slots (2242/2280)

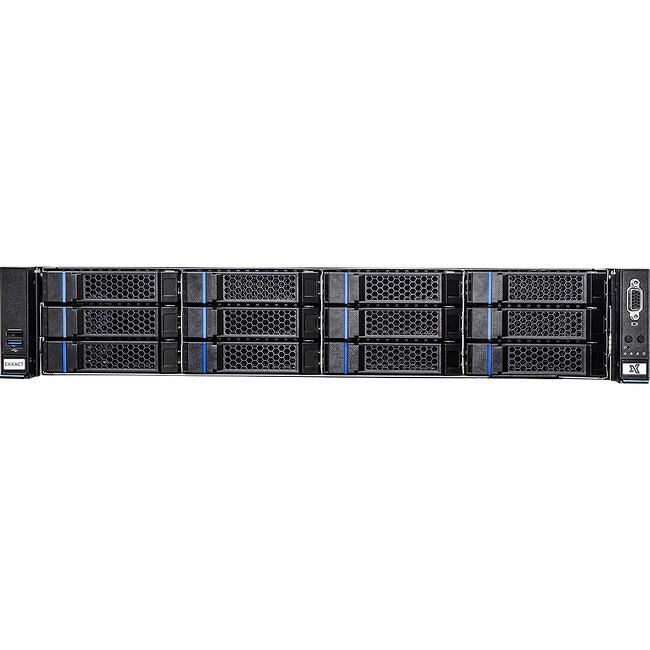

Drive Bays
Hot-swap
- 12x 3.5"/2.5" Hot-swap drive bays (Front)
- Supports 8x NVMe/SATA + 4x SATA
- 2x 2.5" Fixed drive bays (Internal)
- Supports 2x NVMe

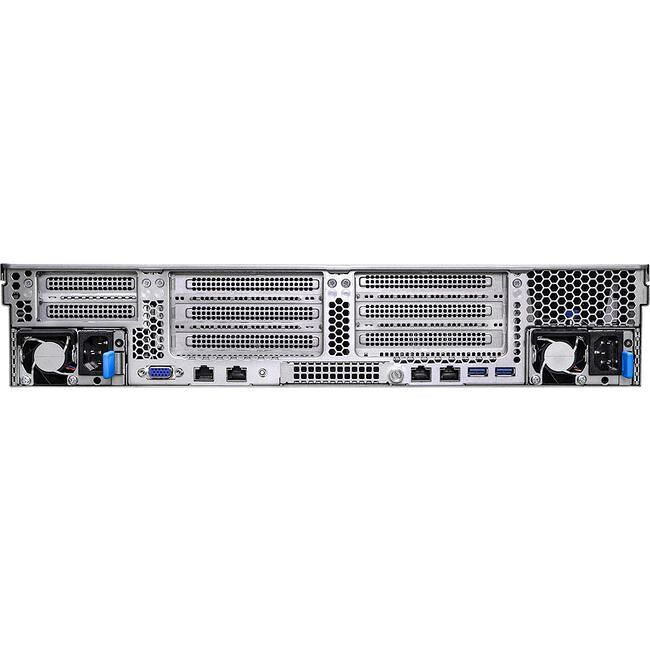

Interfaces/Ports
USB Ports
- 1x USB 2.0 (Front, Type A)
- 1x USB 3.2 Gen1 (Front, Type A)
- 2x USB 3.2 Gen1 (Rear, Type A)
Number of SATA Interfaces
12
Number of NVMe Interfaces
- 10x U.2
- 2x M.2
LAN
- 2x 1000BASE-T RJ45 LAN Port
- 1x RJ45 IPMI dedicated LAN Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes (1+1)
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.4"
Width
17.2"
Depth
30.3"
