Highlights:
  • Rack Height: 2U
  • Processor Supported: 2x Intel Xeon Scalable Family
  • Drive Bays: 12x 3.5" & 2x 2.5" Hot-Swap
  • 2x PCI-E 3.0 x16 & 4x PCI-E 3.0 x8 slots
Contact sales for pricing

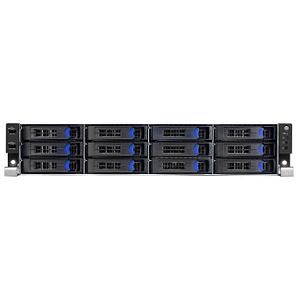

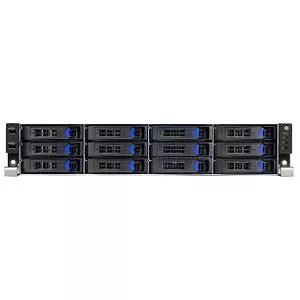

The TensorEX TS2-116926163-ISS is a 2U rack mountable server supporting 2x Intel Xeon Scalable Family processors and a maximum of 1 TB DDR4 memory.

Intel Xeon Scalable Solutions

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
16
Controllers
SATA3
  • Via C621 chipset
  • Intel RST RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
  • 1000BASE-T
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slots
  • 4x PCI-E 3.0 x8 slots
  • 1x PCI-E 3.0 x16 OCP 2.0 slot (Connector A+B)
  • 1x PCI-E 3.0 x16 Storage mezzanine slot
  • 1x PCI-E 3.0 x4 M.2 connector (2280/2260/2242)
Drive Bays
Hot-Swap
  • 12x 3.5"/2.5" drive bays (front)
  • 2x 2.5" drive bays (rear)
Interfaces/Ports (per node)
Total Number of USB Ports
4
Number of USB 3.0 Ports
2 (rear)
Number of USB 2.0 Ports
2 (front)
Number of SATA Interfaces
14
Number of NVMe Interfaces
4
Number of M.2 Interfaces
1
LAN
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
770 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.43""
Width
17.32"
Depth
27.56"
