Highlights:
  • Rack Height: 2U
  • Number of nodes: 4
  • Processor Supported (Per Node): 1x AMD EPYC 7002 Series
  • Drive Bays: 3x 3.5" Hot-Swap
Contact sales for pricing

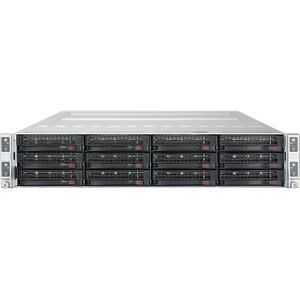

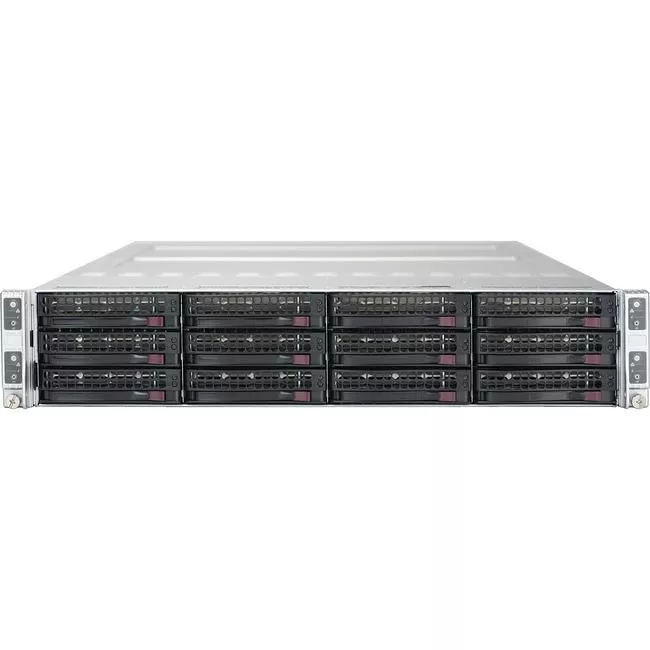

The TensorEX TS2-101580411 is a 2U 4x node rack mountable server supporting 1x AMD EPYC 7002 Series processor, a maximum of 1 TB DDR4 memory, 2x PCI-E 4.0 x16 slots, and support for 1x SIOM networking card.

Processor & Chipset (per node)
Number of Nodes
4
Number of Processors Supported
1
Processor Socket
SP3
Processor Type
EPYC
Processor Supported
  • 7002-Series
Thermal Design Power (TDP)
N/A
Memory (Per node)
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-3200/PC4-25600
Number of Total Memory Slots
8
Controllers (Per node)
Controller Type
SATA3
Display & Graphics (Per node)
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication (Per node)
SIOM Options
  • 1000BASE-T
  • 10G SFP+
  • 10GBASE-T
  • 25 GbE
  • IB FDR
I/O Expansions (Per node)
PCI Express
  • 2x PCI-E 4.0 x16 slots (Low Profile)
  • 1 SIOM card support
  • 1x M.2 PCI-E 3.0 x4 slot (2280, 22110)
Drive Bays (Per node)
Hot-swap
  • 3x 3.5" Hot-Swap
M.2
1x M.2 SATA/PCI-E
Interfaces/Ports
Total Number of USB Ports
3
Number of USB 3.0 Ports
2 (rear)
Number of USB 2.0 Ports
1 (Type A)
Number of SATA Interfaces
6
Optional SIOM cards
  • 2x RJ45 1000BASE-T Ports
  • 4x RJ45 1000BASE-T Ports
  • 2x SFP+ 10G Ports
  • 4x SFP+ 10G Ports
  • 2x RJ45 10GBASE-T Ports
  • 4x RJ45 10GBASE-T Ports
  • 2x SFP28 and 2x RJ45 25GbE Ports
  • 2x QSFP and 2x RJ45 IB FDR Ports
  • 1x QSFP and 2x RJ45 IB FDR Ports
LAN
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
DOM
1x Disk on Module
Power Description
Number of Power Supplies
2
Maximum Power Supply Wattage
2200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.47"
Width
17.25"
Depth
28.5"
