Highlights:
  • Rack Height: 1U
  • Processor Supported: 2x Intel Xeon Scalable family
  • Ethernet Technology: 10GBASE-T
  • Drive Bays: 10x 2.5" Hot-Swap NVMe
Contact sales for pricing

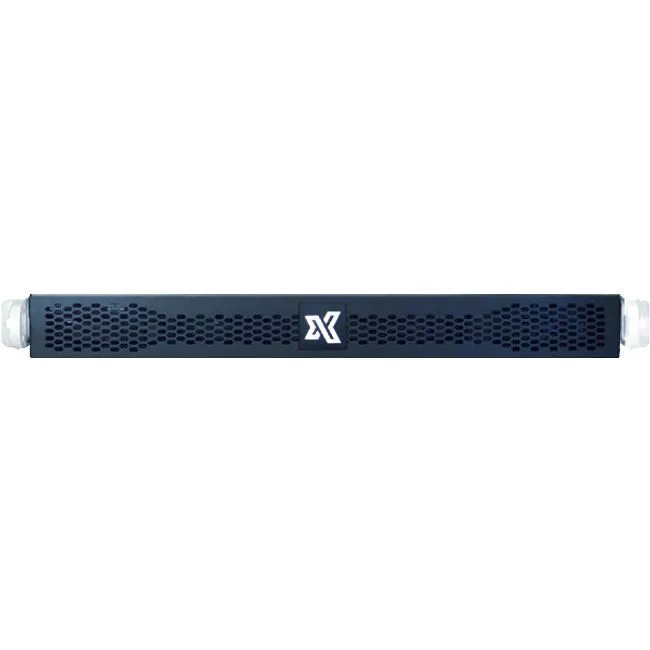

The TensorEX TS1-953658 is a 1U rack mountable server supporting 2x Intel Xeon Scalable family processors and a maximum of 3 TB DDR4 memory.

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Thermal Design Power (TDP)
205 W
UPI
2 UPI up to 10.4 GT/s
Memory
Maximum Memory
3 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
24
Controllers
SATA3
  • Via C621 chipset
  • RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slots (Supports 1x double wide card)
Drive Bays
Hot-swap
  • 10x 2.5" Hot-swap drive bays
  • 10 NVMe (4 hybrid ports for optional SAS3 via add-on card)
M.2
  • 1x M.2 NVMe (2242 / 2260 / 2280* / 22110*)
  • 1x M.2 SATA (2242 / 2260 / 2280* / 22110*) via optional SATA cable
  • *Not supported if installing both NVMe & SATA M.2
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 3.0 Ports
5 (2x front, 2x rear, 1x Type A)
Number of NVMe Interfaces
6
Number of NVMe Hybrid Interfaces
4 (with optional SAS3 add-on card)
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port
1x serial header
DOM
2x DOM ports
Power Description
Number of Power Supplies
2
Maximum Power Supply Wattage
1000 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
27.82"
