Highlights:
  • Rack Height: 1U
  • Processor Supported: 2x AMD EPYC 7001/7002 Series
  • Drive Bays: 12x 2.5" Hot-Swap
  • M.2 Slots: 2x (SATA/PCIe)
Contact sales for pricing

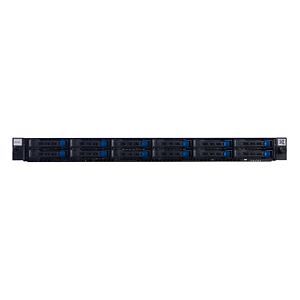

The Tensor TS1-693024 is a 1U rack mountable server supporting 2x AMD EPYC 7001/7002 Series processors and a maximum of 2 TB DDR4 memory. With an industry-leading Core Density of up to 64 Cores, it is optimized for HPC and Cloud Computing, as well as Memory Cache and Virtualization Applications.

Processor & Chipset
Number of Processors Supported
2
Processor Socket
SP3
Processor Type
EPYC
Processor Supported
  • 7001-Series
  • 7002-Series
Memory
Maximum Memory
1.5 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
24
Controllers
SATA3
  • Via SoC
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
1000BASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 1x PCI-E 3.0 x16 slot (Full-height/Half-length)
  • 1x PCI-E 3.0 x16 slot (Low-profile)
  • 1x PCI-E 3.0 x8 slot (Low-profile)
  • 1x OCP 2.0 Mezzanine (3.0 x16)
Drive Bays
Hot-swap
12x 2.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (rear)
Number of SATA Interfaces
10
Number of U.2 NVMe Interfaces
8
Number of M.2 slots
2 (SATA/PCIe)
LAN
  • 2x RJ45 Gigabit Ethernet LAN Ports
  • 1x RJ45 Management Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
2
Maximum Power Supply Wattage
800 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.73"
Width
17.48"
Depth
27"
