Highlights:
  • Rack Height: 1U
  • Processor Supported: 2x Intel Xeon Scalable family
  • Ethernet Technology: 10GBASE-T
  • Drive Bays: 8x 2.5" Hot-Swap
Contact sales for pricing

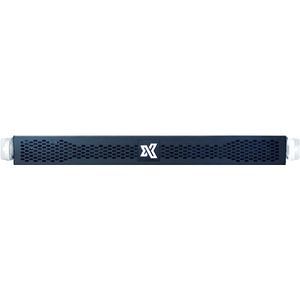

The TensorEX TS1-691406 is designed to manage HPC clusters and features support for the Intel® Xeon® processor Scalable family. The Intel® Omni-Path Fabric CPU offers up to 100 Gbps per port of bandwidth, delivering performance that scales with high node and core counts. The 8x hot-swap drive bays with support for NVMe and redundant power supply modules offer easy serviceability.

Features:

  • 2x Intel® Xeon® processor Scalable family
  • Up to 2x Omni-Path Fabric CPUs per node
  • Up to 24x DDR4 RDIMM/LRDIMM per node
  • 8x 2.5" hot-swap drive bays with support for NVMe
  • 1U Rack mount
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 61XXF
  • Gold 62XX
  • Platinum 81XX
  • Platinum 81XXF
  • Platinum 82XX
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C624
Memory
Maximum Memory
1.5 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
24
Controllers
SATA3
  • Via C624 Chipset
  • Intel Rapid Storage RAID Technology (RSTe) 5.0
  • Intel Embedded Server RAID Technology 2 (ESRT2 1.60 with optional RAID 5 key support
NVMe
  • Via C624 Chipset
  • PCIe OCuLink Connectors
  • Intel VMD Support
  • Intel RSTe VROC Support - Acc. Option
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slot
Drive Bays
Hot-swap
8x 2.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
3
Number of USB 3.0 Ports
3
Number of SATA Interfaces
12
Number of OCuLink Connectors
4
Number of M.2 slots
2
LAN
  • 2x RJ45 Gigabit Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port/Header
1x COM
Power Description
Number of Power Supplies
1
Maximum Power Supply Wattage
1100 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.70"
Width
17.28"
Depth
28.03"
