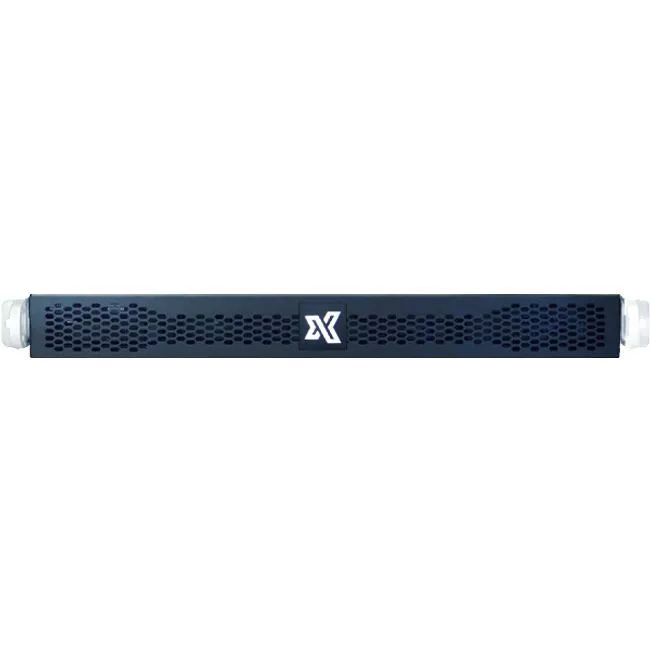

The TensorEX TS1-672338 is a 1U rack mountable server supporting 2x Intel Xeon Scalable processors and a maximum of 1.5 TB DDR4 memory.
About
The TensorEX TS1-672338 is a 1U rack mountable server supporting 2x Intel Xeon Scalable processors and a maximum of 1.5 TB DDR4 memory.
Specifications
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Thermal Design Power (TDP)
205 W
UPI
3 UPI up to 10.4 GT/s
Memory
Maximum Memory
1.5 TB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
12
Controllers
Controller Type
SATA3
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
- 4x PCI-E 3.0 x16 slots (Supports 4x double wide card)
- 1x PCI-E 3.0 x16 slot (Low-profile)
- 1x PCI-E 3.0 x8 slot (Low-profile)
Drive Bays
Hot-swap
2x 2.5" Hot-swap drive bays
Internal
2x 2.5" drive bays
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4 (rear)
Number of SATA Interfaces
4
Number of NVMe Ports
2
LAN
- 2x RJ45 10GBASE-T Ethernet LAN Ports
- 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Header
1x Fast UART 16550 header
Power Description
Number of Power Supplies
2
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
35.2"
