Highlights:
  • Rack Height: 1U
  • Processor: 1x Intel LGA1151 Socket processor
  • Drive Bays: 4x 3.5" Hot-Swap | 2x 2.5" Internal
  • Supports 1x Double-Wide card
Contact sales for pricing

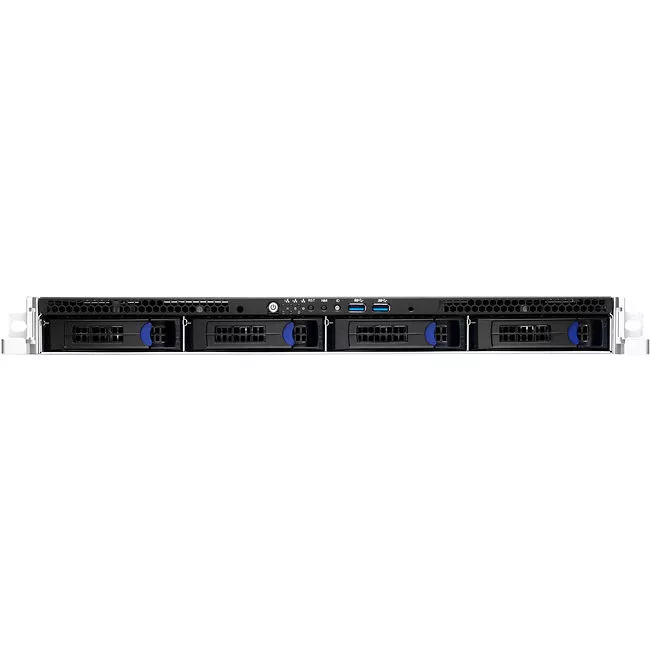

The TensorEX TS1-197535292 is a 1U rack mountable server supporting 1x Intel Xeon E-2100, Core i3, Pentium, or Celeron processor, a maximum of 64 GB DDR4 memory, and 1x Double-Wide card.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 1151
Processor Type
  • Xeon
  • Core
  • Pentium
  • Celeron
Processor Supported
  • E-2100
  • Core i3
  • Pentium
  • Celeron
Thermal Design Power (TDP)
Up to 95W
Chipset Manufacturer
Intel
Chipset Model
C242
Memory
Maximum Memory
64 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
4
Controllers
Controller Type
SATA3
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 1x PCI-E 3.0 x16 slots (Double-Wide card support)
  • 1x PCI-E 3.0 x4 slot (Half-height / Half-Length)
Drive Bays
Hot-swap
4x 3.5" Hot-swap drive bays
Internal
2x 2.5" Hot-swap drive bays
Interfaces/Ports
Number of USB 3.0 Ports
4 (2x front, 2x rear)
Number of SATA Interfaces
4
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port/Header
1x DB-9 COM Port
DOM
2x SATA-DOM connectors
Power Description
Number of Power Supplies
2
Maximum Power Supply Wattage
650 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.72"
Width
17.2"
Depth
25.4"
