Highlights:
  • Rack Height: 1U
  • Processor Supported: 2x Intel Xeon Scalable family
  • Drive Bays: 10x 2.5" Hot-Swap
  • Up to 10x switchless HS NVMe U.2 bays
Contact sales for pricing

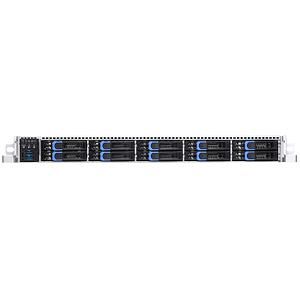

The TensorEX TS1-196696736 is a 1U rack mountable server supporting 2x Intel Xeon Scalable family processors, a maximum of 1 TB DDR4 memory, and 10x 2.5" Hot-Swap drive bays capable of up to 10 HS NVME U.2 drives.

Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 61XXF
  • Gold 62XX
  • Platinum 81XX
  • Platinum 81XXF
  • Platinum 82XX
Thermal Design Power (TDP)
Up to 165W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
16
Controllers
SATA3
  • Via C621 Chipset
  • Intel Rapid Storage RAID Technology (RSTe) 5.0
  • RAID 0, 1, 5, 10
NVMe
  • U.2 cards
  • M.2 PCI-E interface
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
1000BASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slots (Half-Height, Half-Length)
  • 1x PCI-E 3.0 x4 M.2 slot (2280)
Drive Bays
Hot-swap
10x 2.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
7
Number of USB 3.0 Ports
5 (2x front, 2x cable, 1x Type A)
Number of USB 2.0 Ports
2 (2x cable)
Number of SATA Interfaces
4
Number of U.2 Connectors
10
Number of M.2 slots
1
LAN
  • 2x RJ45 Gigabit Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port/Header
1x COM
Power Description
Number of Power Supplies
1
Maximum Power Supply Wattage
800 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.72"
Width
17.2"
Depth
24.6"
