Highlights:
  • Rack Height: 1U
  • Processor: 2x Intel Xeon Scalable family
  • Drive Bays: 4x 3.5" Hot-Swap
  • Supports 1x PCI-E 3.0 slot
Contact sales for pricing

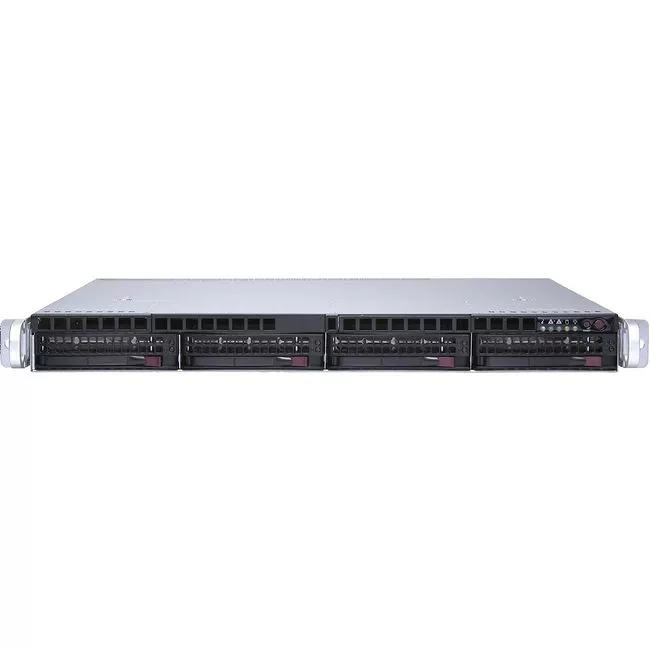

The TensorEX TS1-195098046 is a 1U rack mountable server supporting 2x Intel Xeon Scalable family processors, a maximum of 1 TB DDR4 memory, and 1x PCI-E 3.0 x8 slot.

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Thermal Design Power (TDP)
Up to 140W
UPI
2 UPI up to 10.4GT/s
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
1 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
8
Controllers
Controller Type
SATA3
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
1000BASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 1x PCI-E 3.0 x slots (Full-height, Half-length)
Drive Bays
Hot-swap
4x 3.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB 2.0 Ports
2 (rear)
LAN
  • 2x RJ45 1000BASE-T LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA
Serial Port
1x Serial Header
DOM
2x Disk on Module ports
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Maximum Power Supply Wattage
500 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
23.4"
