Highlights:
  • Rack Height: 1U
  • Processor Manufacturer: Intel
  • Processor Supported: 1x Celeron or Core i3/i5/i7
  • Chipset: Intel H81 PCH
Contact sales for pricing

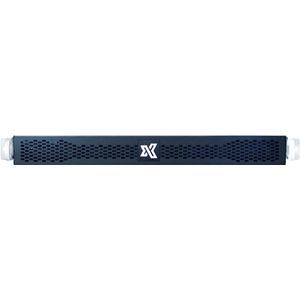

The TensorEX TS1-176554 is a 1U rack mountable server supporting 1x Intel Celeron or Core i3/i5/i7 processor and a maximum of 16 GB DDR3 memory.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 1150
Processor Type
  • Celeron
  • Core
Processor Supported
  • Celeron
  • Core i3
  • Core i5
  • Core i7
Thermal Design Power (TDP)
Up to 84W
Chipset Manufacturer
Intel
Chipset Model
H81 PCH
Memory
Maximum Memory
16 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1600/PC3-12800
Number of Total Memory Slots
2
Controllers
Controller Type
SATA3
RAID Supported
No
Display & Graphics
Graphics Controller Manufacturer
Intel
Graphics Controller Model
HD Integrated
Network & Communication
Ethernet Technology
1000BASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 1x PCI-Ex16 slot (Full Height, Half Length)
Drive Bays
Internal
2x 2.5" drive bays
Interfaces/Ports
Total Number of USB Ports
4 (2x USB 3.0, 2x USB 2.0)
Number of SATA Interfaces
3 (2x SATA3, 1x SATA2)
LAN
  • 2x RJ45 Gigabit Ethernet LAN Ports
Onboard Video
  • 1x VGA
  • 2x DisplayPort
Serial Port
  • 1x Serial port
  • 3x Serial port header
Power Description
Number of Power Supplies
1
Maximum Power Supply Wattage
220 W
Certification
80 Plus
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.75"
Width
19.00"
Depth
11.12"
