Highlights:
  • Rack Height: 1U
  • Processor Supported: 2x Intel Xeon Scalable family
  • Drive Bays: 2x 2.5" Hot-Swap, 2x 2.5" Internal
  • Supports up to 4x NVIDIA V100 SXM2
Contact sales for pricing

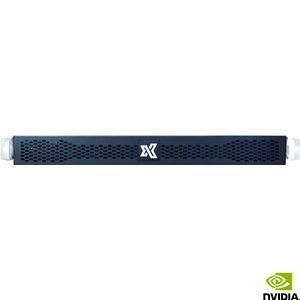

The TensorEX TS1-1595479-NVL is a 1U rack mountable server supporting 2x Intel Xeon Scalable family processors, a maximum of 1.5 TB DDR4 memory, and four V100 Volta GPUs (SXM2), with up to 150GB/s NVLink 2.0  GPU-GPU interconnect.

GPUs have provided groundbreaking performance to accelerate deep learning research with thousands of computational cores and up to 100x application throughput when compared to CPUs alone. Exxact has developed the TensorEX TS1-1595479-NVL, featuring NVIDIA GPU technology coupled with state-of-the-art 150GB/s NVLink 2.0 GPU-GPU interconnect technology.

Features:

  • Supports 2x Intel Xeon Scalable family processors (Socket P)
  • 4x V100 SXM2 32 GB (15.7 TFlops of single precision, 900 GB/s of memory bandwidth, and 32 GB of HBM2 memory per board) or V100 SXM2 16 GB GPUs
  • Up to 2x 2.5" Hot-Swap and 2x 2.5" internal drives
  • A turn-key server with up to 150GB/s NVLink 2.0 GPU-GPU interconnect
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Thermal Design Power (TDP)
Up to 165W
UPI
3 UPI up to 10.4GT/s
Chipset Manufacturer
Intel
Chipset Model
C621
GPU
4x NVIDIA V100 SXM2
Memory
Maximum Memory
1.5 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
12
Controllers
Controller Type
SATA3
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 4x PCI-E 3.0 x16 slots
Drive Bays
Hot-swap
2x 2.5" Hot-swap drive bays
Fixed
2x 2.5" internal drive bays
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SATA Interfaces
4
LAN
  • 2x RJ45 10GBASE-T LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port
1x Fast UART 16550 Header
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
35.2"
