Highlights:
  • Rack Height: 1U
  • Processor Supported: 1x AMD EPYC 7002 Series
  • Drive Bays: 10x 2.5" Hot-Swap
  • 2x 10GBASE-T Ethernet Ports
Contact sales for pricing

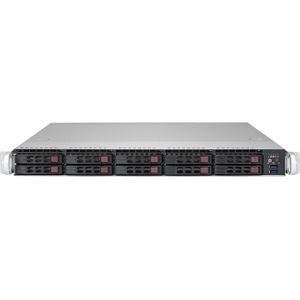

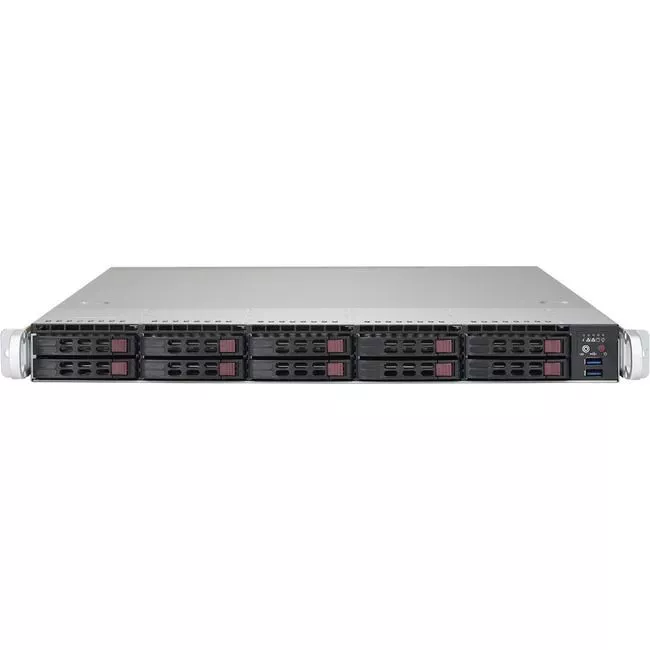

The TensorEX TS1-132976935 is a 1U rack mountable server supporting 1x AMD EPYC 7002 Series processor, a maximum of 1 TB DDR4 memory, and 3x PCI-E 4.0 x16 slots.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
SP3
Processor Type
EPYC
Processor Supported
  • 7002-Series
Thermal Design Power (TDP)
240W
Memory
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-3200/PC4-25600
Number of Total Memory Slots
8
Controllers
Controller Type
SATA3
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 2x PCI-E 4.0 x16 slots (Full-Height, Half-Length)
  • 1x PCI-E 4.0 x16 slot (Low-profile, Limited PCI-E 4.0 support)
  • 1x M.2 PCI-E 4.0 x2 slot
Drive Bays
Hot-swap
10x 2.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
7
Number of USB 3.0 Ports
7 (2x front, 4x rear, 1x Type A)
Number of SATA Interfaces
2
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
DOM
2x Disk on Module ports
Power Description
Number of Power Supplies
2
Maximum Power Supply Wattage
500 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
23.5"
