The AP3965i/e is an ultra-high performance 802.11a/b/g/n/ac wave 2 outdoor access point that extends mobility beyond the walls. These outdoor access points are designed to operate in harsh environments such as warehouses, manufacturing plants, parks and stadiums. The AP3965 is powered via 802.3at power-over-Ethernet (PoE+).
The AP3965i/e is available in both internal and external antenna models. The AP3965i comes with an integrated eight port antenna array for ease of installation. The AP3965e requires professional installation and includes eight standard N-type antenna connectors with integrated lightning protection supporting both 2.4GHz and 5GHz band antennas.
The AP3965i/e is built on the latest Wi-Fi technology including 802.11ac wave2, dynamic radio management, and spectrum analysis with interference classification, beamforming, multi-user MIMO, self-forming and self-healing meshing, security, role-based authentication, authorization, and access control. The 4x4:4 platform is capable of delivering up to 2.5 Gbps over-the-air-performance and up to 90,000 packets per second on the wire port. Multiple antenna offerings (e.g., Omni, sector, and panel) for the AP3965e ensure that deployments can be optimized to meet any unique coverage or capacity needs.
The AP3965i/e is available in both internal and external antenna models. The AP3965i comes with an integrated eight port antenna array for ease of installation. The AP3965e requires professional installation and includes eight standard N-type antenna connectors with integrated lightning protection supporting both 2.4GHz and 5GHz band antennas.
The AP3965i/e is built on the latest Wi-Fi technology including 802.11ac wave2, dynamic radio management, and spectrum analysis with interference classification, beamforming, multi-user MIMO, self-forming and self-healing meshing, security, role-based authentication, authorization, and access control. The 4x4:4 platform is capable of delivering up to 2.5 Gbps over-the-air-performance and up to 90,000 packets per second on the wire port. Multiple antenna offerings (e.g., Omni, sector, and panel) for the AP3965e ensure that deployments can be optimized to meet any unique coverage or capacity needs.
See More
SPECIFICATIONS
General Information
Manufacturer
Extreme Networks, Inc
Manufacturer Part Number
31019
Manufacturer Website Address
http://www.extremenetworks.com
Brand Name
Extreme Networks
Product Model

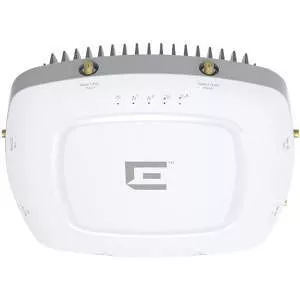

AP3965e
Product Name
AP3965e Wireless Access Point
Product Type
Wireless Access Point
Technical Information
Wireless LAN Standard
IEEE 802.11ac
Frequency Band
Number of External Antennas
8
Wireless Transmission Speed
2.53 Gbit/s
MIMO Technology
Yes
Beamforming Technology
Yes
Interfaces/Ports
Ethernet Technology
Number of Network (RJ-45) Ports
2
PoE (RJ-45) Port
No
PoE PD Port
Yes
VGA
No
HDMI
No
USB
No
Powerline
No
Physical Characteristics
Form Factor
Wall Mountable
Height
2.4"
Width
9.5"
Depth
8.2"
Weight (Approximate)
6.61 lb
Miscellaneous
Package Contents
- AP3965e Wireless Access Point
- Flat Wall Mounting
Warranty
Limited Warranty
1 Year
