Epiphan ESP0419 DVI2PCIe A/V Kit


Extend the functionality of your DVI2PCIe and DVI2PCIe Duo internal capture card. The optional DVI2PCIe A/V kit makes it easy to increase the capture card's ability to handle more video and audio inputs. The kit includes two daughter boards.

Connecting the DVI2PCIe A/V Kit

All full height and low-profile brackets to accommodate any setup are included in the kit. Each daughter board is connected to the DVI2PCIe or DVI2PCIe Duo capture card using a ribbon cable (supplied). Daughter boards can be interchanged and connected simultaneously. Refer to the following for configuration options specific to your internal capture card:

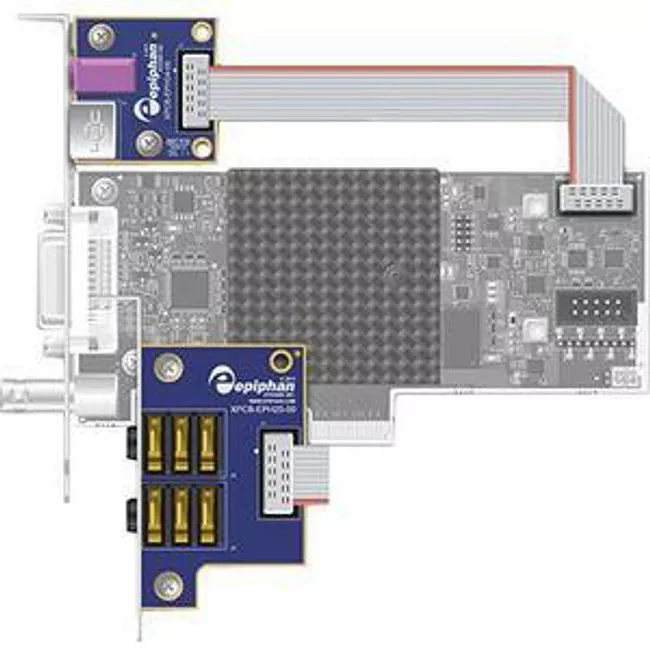

Full-height configuration (shown here for DVI2PCIe Duo)

Low-profile configuration (shown here for DVI2PCIe Duo)
