EMX-ETL550AWT-M-00
MPN: ETL550AWT-M

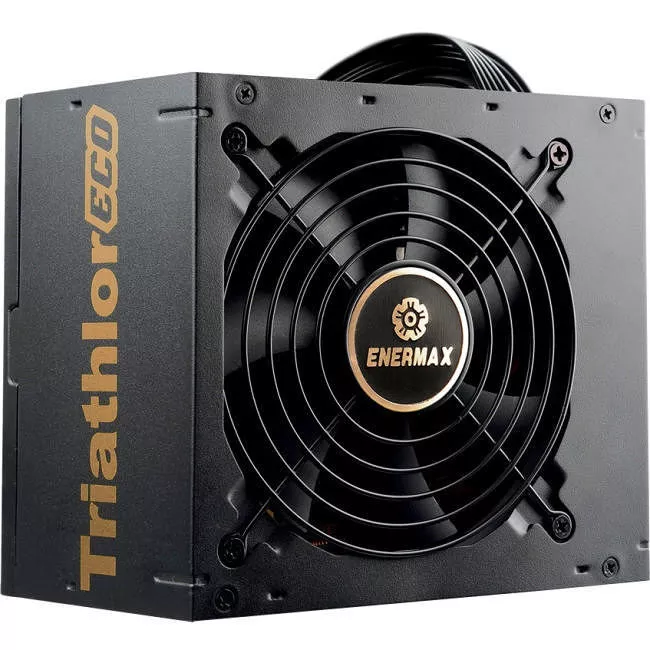

Enermax ETL550AWT-M Triathlor ECO ATX12V & EPS12V 550W Power Supply

Highlights
General Information
Manufacturer
Enermax Technology Corporation
Manufacturer Part Number
ETL550AWTM
Manufacturer Website Address
http://www.enermax.com
Brand Name
Enermax
Product Line
Triathlor
Product Series
ECO
Product Model
ETL550AWT-M
Product Name
Triathlor ECO ETL550AWT-M ATX12V & EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
88%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Voltage
  • Over Power
  • Short Circuit
  • Surge
  • Inrush Current
    • Modular
    Yes
    ATI CrossFire Supported
    Yes
    NVIDIA SLI Supported
    Yes
    Power Description
    Number of +12V Rails
    1
    Input Voltage Type
    AC
    Input Voltage
    240 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Output Voltage Detail
  • 3.3 V DC @ 18 A
  • 5 V DC @ 15 A
  • 12 V DC @ 42 A
  • -12 V DC @ 300 mA
  • 5 V DC @ 2.5 A
    • Input Current
  • 8 A @ 110V
  • 4 A @ 220V
    • Output Current
  • 18 A
  • 15 A
  • 42 A
  • 300 mA
  • 2.50 A
    • Interfaces/Ports
    Receptacles
  • 1 x ATX
  • 1 x ATX12V
  • 2
  • 8
  • 4 x LP4
  • 1 x SP4
    • Physical Characteristics
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.9"
    Depth
    5.5"
