EMX-ETL450AWT-M-00
MPN: ETL450AWT-M

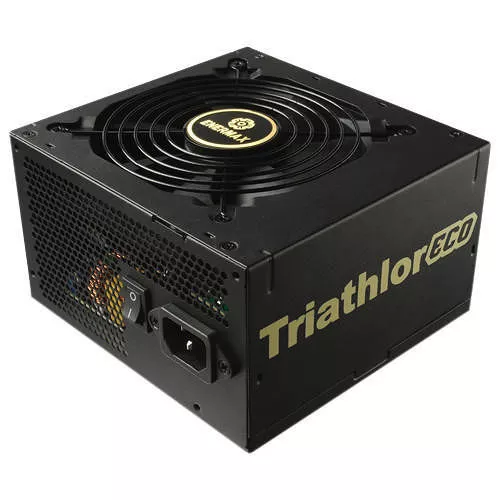

Enermax ETL450AWT-M Triathlor ECO 450W Power Supply

Highlights
General Information
Manufacturer
Enermax Technology Corporation
Manufacturer Part Number
ETL450AWTM
Manufacturer Website Address
http://www.enermax.com
Brand Name
Enermax
Product Line
Triathlor
Product Series
ECO
Product Model
ETL450AWT-M
Product Name
Triathlor ECO 450W ETL450AWT-M
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
88%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Voltage
  • Over Power
  • Surge
  • Short Circuit
  • Inrush Current
  • Output Under Voltage
  • Overload
    • Modular
    Yes
    Power Description
    Number of +12V Rails
    1
    Input Voltage Type
    AC
    Input Voltage
    240 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Output Voltage Detail
  • 3.3 V DC @ 16 A
  • 5 V DC @ 15 A
  • 12 V DC @ 34 A
  • -12 V DC @ 300 mA
  • 5 V DC @ 2.5 A
    • Input Current
  • 7 A @ 110V
  • 3.5 A @ 220V
    • Output Current
  • 16 A
  • 15 A
  • 34 A
  • 300 mA
  • 2.50 A
    • Interfaces/Ports
    Plug/Connector
    On/Off Switch
    Receptacles
  • 1 x ATX
  • 1 x ATX12V
  • 2
  • 8
  • 4 x LP4
  • 1 x SP4
    • Physical Characteristics
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.9"
    Depth
    5.5"
    Weight (Approximate)
    4.67 lb

    Specifications
