EMX-ETA550AWT-M-00
MPN: ETA550AWT-M

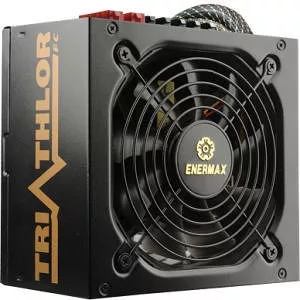

Enermax ETA550AWT-M Triathlor ATX12V & EPS12V 550W Power Supply

Highlights
General Information
Manufacturer
Enermax Technology Corporation
Manufacturer Part Number
ETA550AWTM
Manufacturer Website Address
http://www.enermax.com
Brand Name
Enermax
Product Line
Triathlor
Product Model
ETA550AWT-M
Product Name
Triathlor ETA550AWT-M ATX12V & EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
85%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Current
  • Over Power
  • Over Temperature
  • Over Voltage
  • Short Circuit
  • Under Voltage
  • Surge
  • Inrush Current
    • Modular
    Yes
    ATI CrossFire Supported
    Yes
    NVIDIA SLI Supported
    Yes
    Reliability
    MTBF
    100000 Hour
    Power Description
    Number of +12V Rails
    2
    Input Voltage Type
    AC
    Input Voltage
    240 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
  • 5 V
    • Output Voltage Detail
  • 3.3 V DC @ 24 A
  • 5 V DC @ 24 A
  • 12 V DC @ 25 A
  • -12 V DC @ 500 mA
  • 5 V @ 2.5 A
    • Output Current
  • 24 A
  • 25 A
  • 500 mA
  • 2.50 A
    • Output Power
    550 W
    Interfaces/Ports
    Plug/Connector
    On/Off Switch
    Receptacles
  • 1 x ATX
  • 1 x ATX12V
  • 3
  • 6
  • 5 x LP4
  • 1 x SP4
    • Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.9"
    Depth
    5.5"
    Length
    3"
    Weight (Approximate)
    5.40 lb
    Miscellaneous
    Compatibility

    CPU

    • Intel
    • AMD
    Warranty
    Limited Warranty
    3 Year

    Specifications
