EMX-EPM600AWT-00
MPN: EPM600AWT

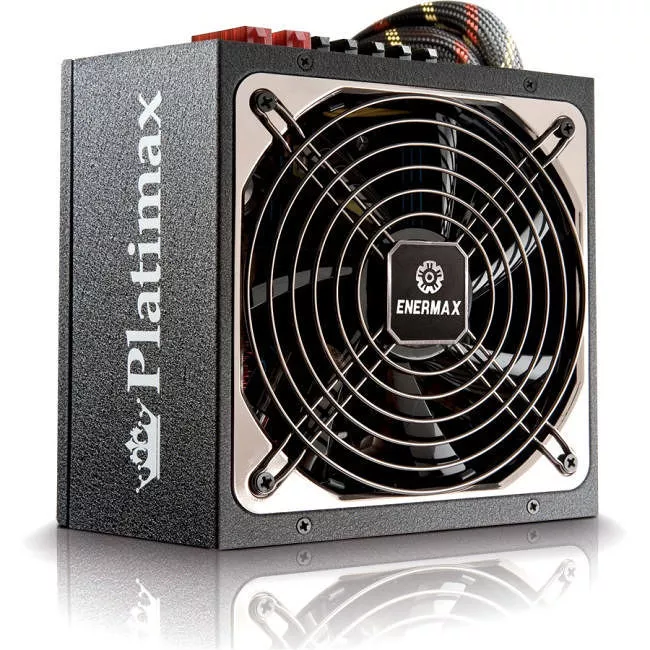

Enermax EPM600AWT Platimax ATX12V & EPS12V - 600 W Power Supply

Highlights
General Information
Manufacturer
Enermax Technology Corporation
Manufacturer Part Number
EPM600AWT
Manufacturer Website Address
http://www.enermax.com
Brand Name
Enermax
Product Line
Platimax
Product Model
EPM600AWT
Product Name
Platimax EPM600AWT ATX12V & EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
92.2%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Current
  • Over Voltage
  • Output Under Voltage
  • Over Power
  • Over Temperature
  • Short Circuit
    • Modular
    Yes
    ATI CrossFire Supported
    Yes
    NVIDIA SLI Supported
    Yes
    Reliability
    MTBF
    100000 Hour
    Power Description
    Number of +12V Rails
    3
    Input Voltage Type
    AC
    Input Voltage
    240 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Output Voltage Detail
  • 3.3 V DC @ 20 A
  • 5 V DC @ 20 A
  • 12 V DC @ 25 A
  • -12 V DC @ 500 mA
  • 5 V DC @ 2.5 A
    • Output Current
  • 20 A
  • 25 A
  • 500 mA
  • 2.50 A
    • Output Power
    600 W
    Interfaces/Ports
    Receptacles
  • 1 x ATX
  • 1 x ATX12V
  • 8 x LP4
  • 1 x SP4
  • 8
  • 4
  • 1 x 24-pin Main Connector
  • 1 x 4+4pin CPU
  • 8 x Serial ATA
  • 4 x 6+2pin PCI-E
    • Physical Characteristics
    Product Color
    Black
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.9"
    Depth
    6.3"
    Length
    10"
    Weight (Approximate)
    1.50 lb
    Miscellaneous
    Compatibility

    Intel CPUs:

    • Core 2 Duo
    • Core 2 Quad
    • Core i5
    • Core i3

    AMD CPUs:

    • Athlon II X2
    • Athlon II X3
    • Athlon II X4
    • Phenom II X2
    • Phenom II X3
    • Phenom II X4
    • Phenom II X6
    Environmentally Friendly
    Yes
    Energy Efficiency Certification
    80 Plus Platinum
    Energy Efficiency Compliance
    Energy-related Products Directive Lot 6 (ErP Lot 6)
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    5 Year

    Specifications
