EMX-EPF600AWT-00
MPN: EPF600AWT

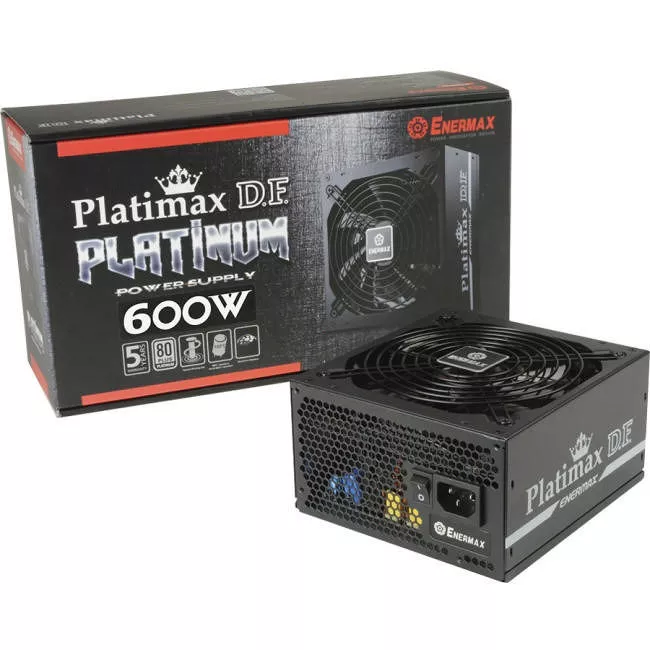

Enermax EPF600AWT Platimax D. F. 600W Power Supply


Highlights

Enermax extends its flagship series Platimax to the new Platimax D. F.

The 80Plus Platinum certified PSU series is equipped with the patented DFR ™ (Dust Free Rotation) technology. The DFR ™ technology, after starting the PSU, lets the fan spin reverse for 10 seconds at full speed to remove accumulated dust from the fan blades. After 10 seconds the fan returns to normal operation. This process will grant a cleaner and long lasting PSU.

Up to a workload of 80%, the fan rotates at constant 550RPM. With a maximum speed of 1000 RPM, the almost inaudible fan grants an extremely silent operation.

The fully-modular PSU comes with individually sleeved cables (SLEEMAX™) offering further protection and the highest flexibility for system installation. Additionally, the CPU power cable has been extended to 70 cm for an easier assembly.

This high-end PSU line is available in 500W and 600W and is the perfect solution for core gamers and graphic workstations.

Dust Free Rotation™ Technology

  • DFR™ (Dust Free Rotation) technology
    The patented technology DFR ™ allows the fanto remove automatically the dust from the fan blades.
    After starting the PSU, the fan spins in reverse at full speed removing all the dust.
    After that it will shift back to the normal operation mode.
Efficiency
  • 80 PLUS® Platinum
    Up to 93% efficiency at 230VAC between 20 and 100% load. The Platimax D.F. series is 80 PLUS® Platinum certified.
  • Support of EU Eco-Design Regulations
    Platimax D.F. helps systems to meet the EU eco-design directive ErP Lot 6 2013 (< 0.5W in standby mode*) due to a high-efficient 5V standby (+5Vsb) circuitry as well as the EU regulation no. 617/2013 demanding amongst others 85% efficiency at 50% load and 82% at 20% and 100% load.
    only in combination with an ErP Lot 6 2013 ready mainboard
Power
  • DC-to-DC Design
    The secondary voltages (+5V and +3.3V) are generated by the primary voltage rail (+12V). Positive effect: Higher efficiency, clean output voltages (low ripple & noise) and a perfect voltage regulation at all loads.
  • Full Gaming Power
    Four 6+2P (8P) PCI-E connectors to power high-end graphics cards and multi-GPU systems (CrossfireX™ & SLI™).
  • Full GPU & CPU Power
    Massive 12V rail to power high-performance and overclocked processors and graphics cards.
Connectivity
  • SLEEMAX™ Cables
    New individual sleeved cables for comfortable cable management and higher safety.
  • Full-modular Cable Management
    Cables can be completely removed in order to make the system installation and cable routing more comfortable and to improve the air circulation inside the case.
  • Enhanced Cable Management
    CPU connector cable is extended to 70cm for easier cable management.
  • DXXII ready!
    Full support of most current DX12 graphics cards due to minimum four 6+2P (8P) PCI-E connectors.
Compatibility
  • Intel® ATX12V v2.4
    Compliant with the Intel Power Supply Design Guide for Desktop Platform Form Factors Revision 1.31 April 2013.
  • Intel® Skylake™ Ready!
    Full support of the C6/C7 energy-saving functions of Intel® processors, first introduced with the Haswell™ generation.
  • Worldwide Compatibility
    Automatic 100-240V AC input for global usage and up to 99% active Power Factor Correction (PFC).
