EAT-EATS30P-00
MPN: EATS30P

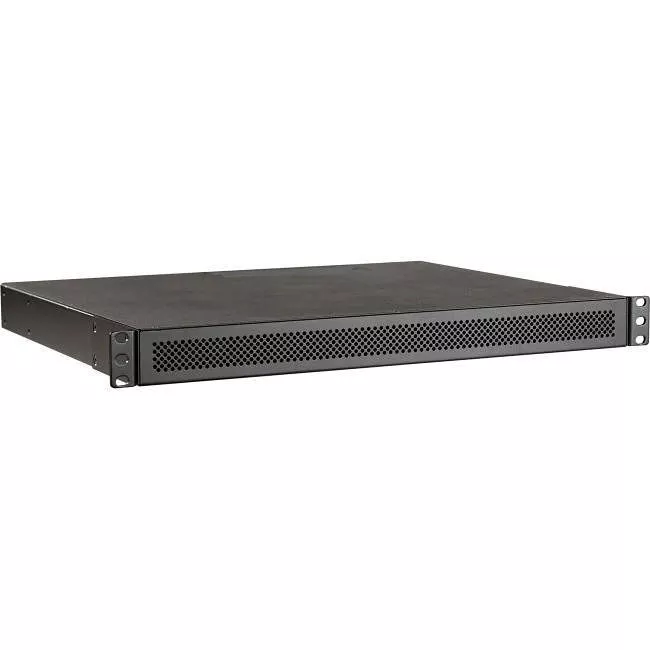

Eaton EATS30P ATS rack PDU, 1U, (2) L6-30P input, 5.76 kW max, 208-240V, 24A, 10 ft cord, Single-phase, Outlets: (1) L6-30R


Highlights
The Eaton EATS30 Monitored rack automatic transfer switch operates at 200-240 volt single-phase 24 amps. The dual inputs are through two 10-foot cords with L6-30P plugs and output is through a single L6-30R receptacle. The transfer switch features fast 10 ms transfer between sources, supports out-of-phase (non-synchronous) power sources and has remote monitoring through the included network card using SNMP or a web browser.
  • Dual input rack automatic transfer switch with intelligent control and monitoring
  • Fast transfer time of 10ms to ensure equipment uptime and reliability
  • Intelligent control circuitry supports out-of-phase power sources (non-synchronized) for reliablity
  • Network connectivity supports voltage, current and transfer monitoring over SNMP or using a standard web browser
  • Supports high power devices or allows for connection of a rack power distribution unit to support multiple receptacles
  • Low profile, 1U rackmount design
