EAT-83501-00
MPN: 83501

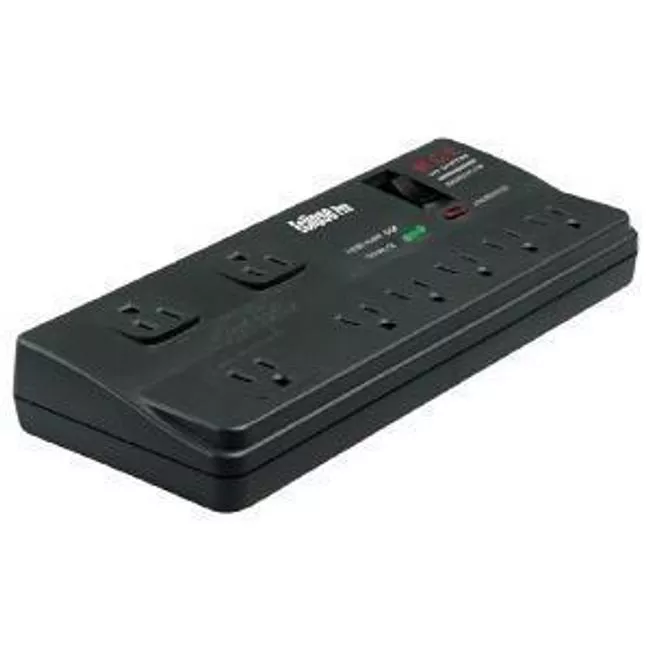

Eaton 83501 Eclipse Pro Surge Suppressor

Highlights
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
83501
Manufacturer Website Address
http://www.eaton.com
Brand Name
Eaton
Product Line
Eclipse
Product Name
Eclipse Pro Surge Suppressor
Product Type
Surge Suppressor/Protector
Technical Information
Plug/Connector Type
NEMA 5-15
Receptacles
8
Power Description
Input Voltage
120 V AC
Output Voltage
120 V AC
Maximum Line Current
15 A
Power Handling
1800 VA
Surge Energy Rating
1020 J
Controls/Indicators
Status Indicators
  • Load Protected
  • Ground OK
    • Physical Characteristics
    Power Cord/Cable Length
    6 ft
    Height
    1.3"
    Width
    3.9"
    Depth
    9.8"
    Weight (Approximate)
    1.50 lb
    Miscellaneous
    Additional Information
    • Master On/Off switch for convenient control of all plugs
    • Audible alarm provides audible indication of failed surge suppressor
    • Response time: < 1 nanosecond
    • Clamping voltage: 330 volts AC
    • "Load Protected" LED indicates normal operation of surge suppressor
    • "Ground OK" LED identifies correct AC ground for proper operation of surge suppressor
    • 5 standard grounded outlets
    • 3 spaced outlets for protection of devices with transformer blocks
    • 360 degree rotating plug
    • Standard package: 20 per master carton
    Certifications & Standards
    • UL 1449, 1363, 1283 listed
    • cUL
    • EMI/RFI
    Warranty
    Limited Warranty
    10 Year
