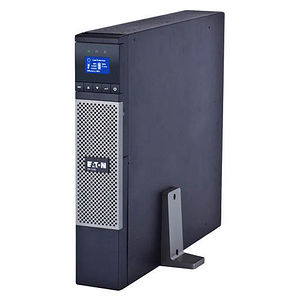

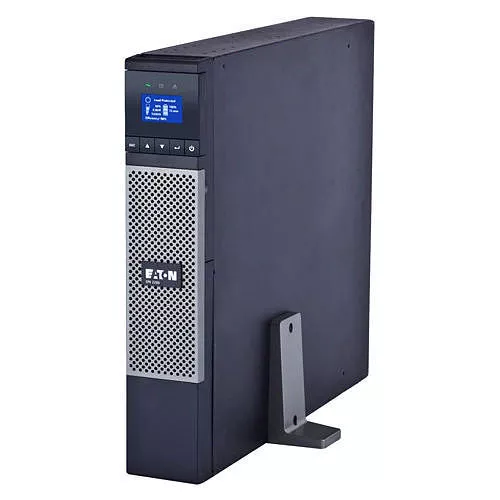

Eaton 5PX1000RT 5PX 1000VA 1000W UPS

General Information

Manufacturer: Eaton Corporation

Manufacturer Part Number: 5PX1000RT

Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica

Brand Name: Eaton

Product Series: 5PX

Product Model: 5PX1000RT

Product Name: 5PX 1000 VA Tower/Rack Mountable UPS

Marketing Information:

The Eaton 5PX UPS is an integrated power management solution. Paired seamlessly with Intelligent Power Software Suite, the 5PX provides the tools you need to manage your equipment, even in virtualized environments. Designed with managed outlet segments, you can monitor energy consumption on the intuitive LCD screen. It also delivers more power than comparable UPSs and has an efficiency rating of up to 99%.

Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P

Receptacles: 8 x NEMA 5-15R

Switching Time: 4 ms

Power Description

Load Capacity (VA): 1000 VA

Load Capacity (Watt): 1000 W

Input Voltage: 110 V AC

Input Voltage Range:

100 V AC

120 V AC

127 V AC

89 V AC - 151 V AC

70 V AC - 153 V AC

Output Voltage: 132 V AC

Interfaces/Ports

Serial Port: Yes

USB: Yes

Total Number of Expansion Slots: 1

Battery Information

Battery Characteristics: Maintenance-free, Sealed

Battery Chemistry: Lead Acid

Backup/Run Time (Full Load): 7 Minute

Backup/Run Time (Half Load): 18 Minute

Hot Swappable: Yes

Physical Characteristics

Height: 3.4"

Width: 17.4"

Depth: 20.6"

Rack Height: 2U

Form Factor: Tower/Rack Mountable

Weight (Approximate): 62 lb

Miscellaneous

Package Contents:

• 5PX 1000 VA Tower/Rack Mountable UPS
• Four-post Rail Kit
• User Manual CD
• Tower Pedestals
• Intelligent Power Software Suite CD
• Quick Start Guide
• RS-232 Serial Cable
• USB Cable
• Phillips Head Screw Driver

Certifications & Standards:

• UL1778
• UL497A
• UL
• cUL
• FCC Part 15 subpart B Class A

Software Included: Eaton Intelligent Power Software Suite

Warranty

Limited Warranty: 3 Year
