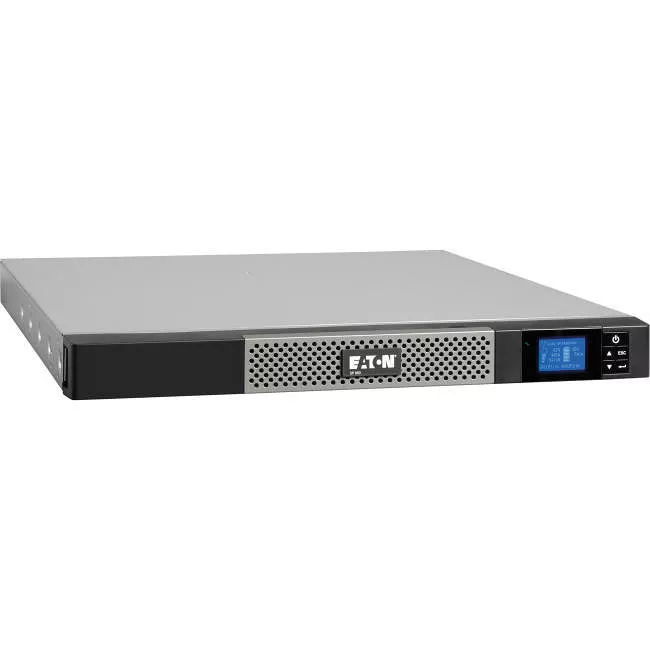

Eaton 5P1550GR 1U 5P 1550VA 208/230V Rackmount UPS

MPN: 5P1550GR
EAT-5P1550GR-00
Highlights
  • Backup/Run Time (Full Load): 4 Minute
  • Output Voltage: 240 V AC | 208 V AC | 132 V AC | 220 V AC
  • Subcategory: UPS
  • Product Type: Line-interactive UPS
EAT-5P1550GR-00
EAT-5P1550GR-00

Eaton 5P1550GR 1U 5P 1550VA 208/230V Rackmount UPS

MPN: 5P1550GR
Highlights
  • Backup/Run Time (Full Load): 4 Minute
  • Output Voltage: 240 V AC | 208 V AC | 132 V AC | 220 V AC
  • Subcategory: UPS
  • Product Type: Line-interactive UPS
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
5P1550GR
Manufacturer Website Address
http://www.eaton.com
Brand Name
Eaton
Product Model
5P
Product Name
5P Rackmount UPS
Product Type
Line-interactive UPS
Technical Information
Plug/Connector Type
IEC 60320 C14
Receptacle Type
IEC 60320 C13
Receptacle Detail
6 x IEC 60320 C13
Power Description
Load Capacity
1550 VA/1100 W
Input Voltage
220 V AC
Output Voltage
  • 240 V AC
  • 208 V AC
  • 132 V AC
  • 220 V AC
  • Interfaces/Ports
    Network (RJ-45)
    Yes
    USB
    Yes
    Total Number of Expansion Slots
    1
    Battery Information
    Battery Characteristics
    Maintenance-free, Sealed
    Battery Chemistry
    Lead Acid
    Backup/Run Time (Full Load)
    4 Minute
    Backup/Run Time (Half Load)
    13 Minute
    Hot Swappable
    Yes
    Physical Characteristics
    Height
    1.7"
    Width
    17.2"
    Depth
    21.8"
    Rack Height
    1U
    Form Factor
    Rack-mountable
    Weight (Approximate)
    42.70 lb
    Miscellaneous
    Package Contents
    • 5P Rackmount UPS
    • User Manual CD
    • Intelligent Power Software Suite CD
    • Quick Start Guide
    • USB Cable
    • RS-232 Serial Cable
    • 4-Post Rail Kit
    • 2 x IEC-to-IEC Jumper Cables
    • Output Cable Locking System
    • Input Cable Locking System
    Certifications & Standards
    • UL 1778
    • UL497A
    • cULus
    • CE
    • IEC 62040-2 C1-C2
    • EN 55024
    • CISPR22 Class B
    • FCC part 15 Class B
    Software Included
    Intelligent Power Software Suite
    Energy Star
    Yes
    Environmentally Friendly
    Yes
    Environmental Certification
  • ENERGY STAR
  • RoHS
  • Warranty
    Limited Warranty
    3 Year
