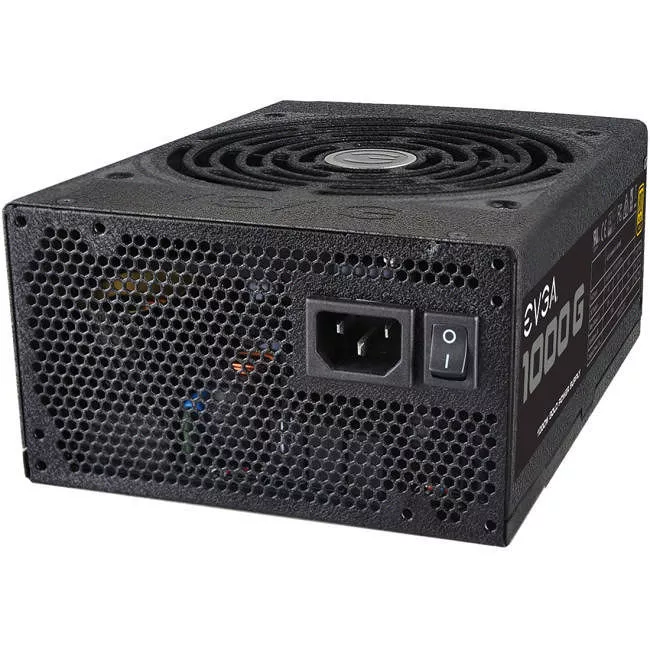

EVGA 120-G1-1000-VR SuperNOVA 1000 G1 Power Supply

General Information

Manufacturer: EVGA Corporation

Manufacturer Part Number: 120-G1-1000-VR

Manufacturer Website Address: http://www.evga.com

Brand Name: EVGA

Product Line: SuperNOVA

Product Model: 1000 G1

Product Name: SuperNOVA 1000 G1 Power Supply

Marketing Information: Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode)



The EVGA SuperNOVA 1000 G1 has arrived! This power supply is 80 Plus Gold Rated, offers 1000W of continuous power, exceptional efficiency and is fully modular. Not to mention, a first class 5 Year EVGA Warranty. Designed with enthusiast needs in mind the EVGA SuperNOVA 1000 G1 power supply is the best choice to power this and next generation enthusiast computers. Take your system to the next level and power up with the EVGA SuperNOVA 1000 G1!





Product Type: Power Supply

Technical Information

Specification Compliance: ATX12V/EPS12V

Efficiency: 90%

Number of Fans: 1

Protection Type:

Over Voltage

Under Voltage

Over Current

Over Power

Short Circuit

Underload

Modular: Yes

NVIDIA SLI Supported: Yes

Reliability

MTBF: 100000 Hour

Power Description

Input Voltage Type: AC

Input Voltage:

120 V AC

230 V AC

Input Voltage Range: 100 V AC to 240 V AC

Number of +12V Rails: 1

Output Voltage:

3.3 V DC @ 25 A

5 V DC @ 25 A

12 V DC @ 83.30 A

-12 V DC @ 800 mA

5 V DC @ 3 A

Input Current: 13.50 A

Output Power: 1000 W

Interfaces/Ports

Plug/Connector: On/Off Switch

Receptacles:

1 x 24-pin ATX Motherboard

2 x 4+4pin ATX12V Motherboard

6 x 6+2pin PCI-E

9 x Serial ATA

6 x 4-pin LP4 Peripheral Device

2 x 4-pin SP4 Floppy Drive

2 x 6-pin PCI-E

Physical Characteristics

Color: Black

Form Factor: Internal

Height: 3.3"

Width: 5.9"

Length: 7.9"

Weight (Approximate): 8 lb

Miscellaneous

Certifications & Standards:

• UL
• CB
• CE
• FCC
• RCM
• BSMI

Environmentally Friendly: Yes

Environmental Certification:

80 Plus Gold

T�V

WEEE

RoHS

Warranty

Limited Warranty: 5 Year
