DTP-VSN400-00
MPN: VSN400

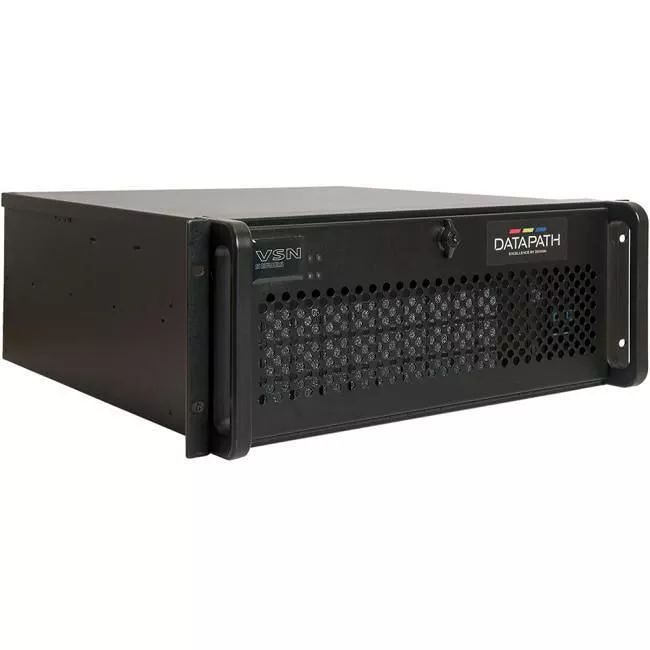

Datapath VSN400 Corei5 + 500W ATX + 16GB RAM + 2 x 240GB SSD + Windows 10

Highlights

Flexible Video Wall Control

The VSN400 uses a COTS motherboard to provide flexibility and suitability for the smaller, more compact, video wall project. It comes complete with four high-performance PCI Express Gen3 expansion slots. Each x16 mechanical slot has been configured for x8 electrical performance giving up to 8GB/s bi-directional bandwidth.

Compatible with all of the Datapath portfolio of Vision capture cards and Image Graphics cards, the VSN400 can provide up to 16 HD outputs or 16 HD/ 32 SD inputs or a combination of the two. Combine two ImageDP4+ graphics cards and two VisionSC-HD4+ capture cards to provide eight HD outputs and eight HD inputs.

The VSN400 is provided in a standard configuration with upgrade options available for processor, memory, storage and power supply.

Multi-application chassis

The VSN400 has been designed for small to medium sized video walls and is ideal for applications such as:

  • Traffic Management Hubs
  • Operation Centres
  • Security Suites
  • Utility Services Operations
  • Process Control Service

Fully featured WallControl 10

Datapath's VSN400 is compatible with Datapath's WallControl 10 software. WallControl 10 allows users to quickly and easily place video sources anywhere on the video wall. Common arrangements can be saved as layouts for recall at any time and any section of the wall can contain carousels of videos playing one after the other at definable intervals.

Administrators of WallControl 10 are able to configure a single system to drive multiple walls. Each of these walls can be assigned a number of user roles, and each user role can allow different access to sources, local videos, layouts and templates.

Quant Compatible

Quant is a video wall compatible collaboration software, allowing users to share numerous application windows with other peers within a group, including those running video walls.

An ideal addition to any boardroom, users are able to share, interact and edit in applications in real time.
