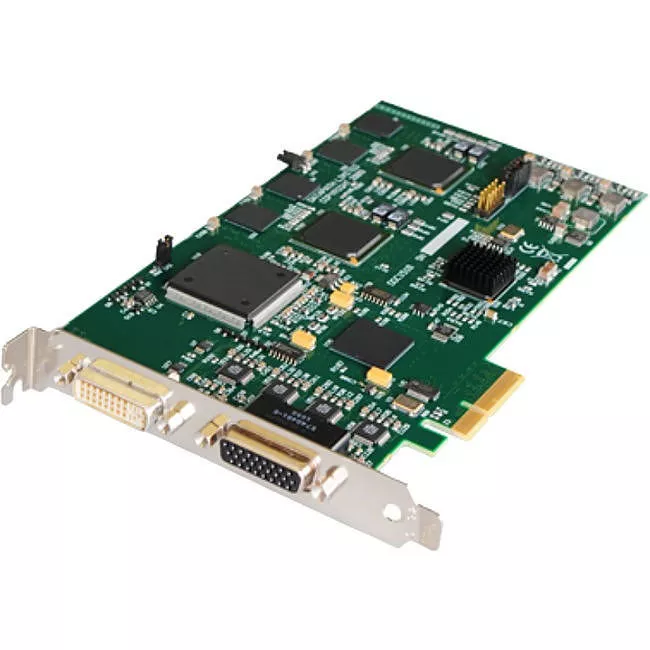

Datapath VISIONSD4+1S Video Capture Card

This video capture card has five complete video capture channels supporting a single channel for up to 1920x1080 DVI or 2048x1536 Analog resolution, plus four SD Analog capture channels.

The VisionSD4+1S captures the Analog/DVI data and triple buffers it into onboard storage. This data is then copied using DMA to the host system for display, storage or streaming.

When a Datapath graphics card is used, the VisionSD4+1S transfers the data directly to the graphics card thereby increasing performance. The VisionSD4+1S capture card sends the relevant portions of each captured image to each display channel and instructs each channel to use its graphics engine to render the data. This fully utilises the hardware and dramatically increases performance.

When the RGB/DVI data is displayed on a non Datapath graphics card, the VisionSD4+1S sends the data to system memory or direct to the graphics card, dependant on the software used for display.

The VisionSD4+1S is an ideal solution for applications that require the capture of an RGB/DVI source simultaneously with up to four SD video sources. Typical applications include:

• Viewing Analog or DVI sources from PCs, MACs, Industrial/medical equipment, cameras and other video equipment
• Streaming video applications
• Video wall controllers
