DTP-VISIONDVI-DL-00
MPN: VISIONDVI-DL

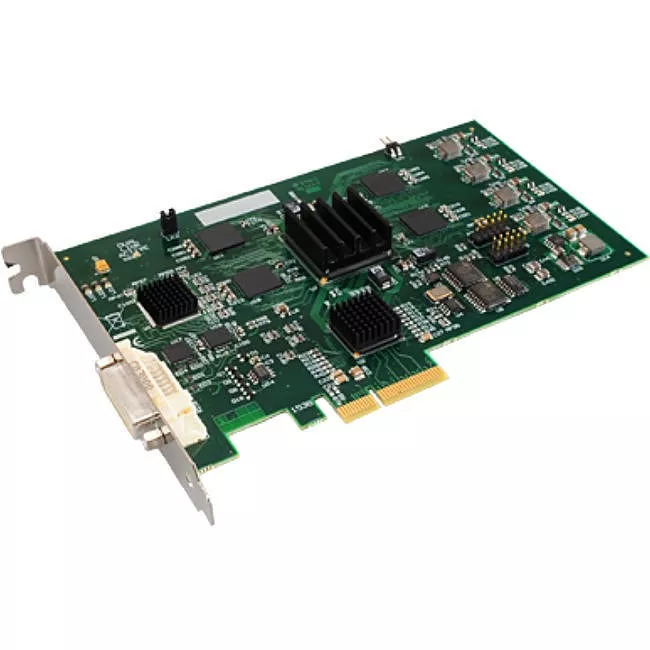

Datapath VISIONDVI-DL Video Capture Card

Highlights

The VisionDVI-DL capture card has integrated DVI equalizers on its inputs to support longer input cable lengths (up to 20m). This video capture card is suitable for a wide range of applications including:

  • Large video walls
  • High resolution, high bandwidth applications
  • Advanced Medical and Machine Vision capture
  • Radar, Security/Surveillance and Military applications
  • IP Render decode capture

Software

The VisionDVI-DL, dual-link DVI capture card, is supplied with a powerful software application for configuring the format of the input sources and displaying the data. Simply connect your video source into the card, run the VisionDVI-DL application to automatically detect the video source resolution and display the captured video in a window on your desktop.

Wall Control-red presents a representational window of the entire display wall showing position and size of video windows. Datapath Wall Control-red video wall software enables you to configure your multi-screen display, launch video overlays and create a video wall layout configuration. With the full version it is possible to save layouts and recall them for future use and also operate Wall Control video wall software on a remote PC via a network connection.

Video Streaming

For streaming applications, the VisionDVI-DL capture card can be used with Windows Media Encoder to compress and stream captured video. To replay the video, use Windows® Media Player.

Any application compatible with Windows® DirectShow technology can use the VisionDVI-DL capture card due to its built-in WDM support.
