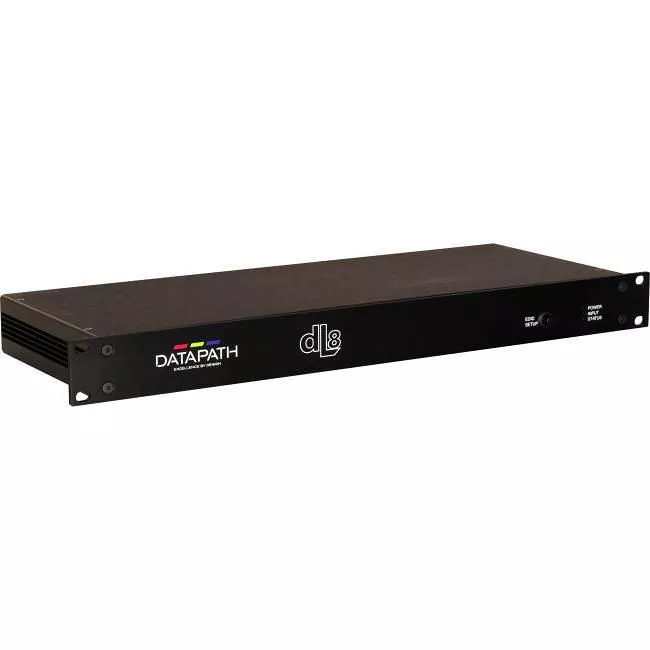

Datapath DL8 1 to 8 Dual Link DVI Distribution Amplifier

MPN: DL8
DTP-DL8-00
Highlights
  • Product Type: Video Distribution Amplifier
  • Condition: New
  • Category: Video Cards and Devices
  • Subcategory: Video Devices
DTP-DL8-00
DTP-DL8-00

Datapath DL8 1 to 8 Dual Link DVI Distribution Amplifier

MPN: DL8
Highlights
  • Product Type: Video Distribution Amplifier
  • Condition: New
  • Category: Video Cards and Devices
  • Subcategory: Video Devices

The Datapath dL8 is an eight output distribution amplifier for ultra-high resolution dual-link DVI signals providing a programmable, flexible and low cost solution for any video wall display.

When used in conjunction with up to eight Datapath x4 stand alone display wall controllers, the Datapath dL8 supports up to 32 screens video walls. One dual-link DVI output, supporting graphics sources with pixel clocks up to 330 MHz and resolutions beyond Quad-HD (3480x2160), can be delivered to eight outputs on separate DVI-D (dual-link) connectors. This Distribution Amplifier supports up to 20m even at full dual-link resolutions due to additional active equalisation and re-clocking hardware, allowing convenient location for flexible display designs.

Flexibility & Creativity

The Datapath dL8 has been design and developed to operate with the x4 stand alone display wall controller. This is a perfect partnership of a dL8 and up to eight Datapath x4 stand alone display wall controllers, allows the user to utilise their creative imagination to construct display solutions for digital signage applications and video walls. Each of the x4 units can accept one of dual-link DVI output from the dL8 and select four arbitrary regions from it for display all standard DVI (single-link)/ HDMI monitors.

Using this solution it is possible to create up to 32 screen video walls, with complex display wall arrangements for any mixture of landscape and portrait display formats. Since the dL8 guarantees that all eight outputs are exactly locked to the source, all these 32 screens can be frame-locked for optimum display of creative, dynamic content.
