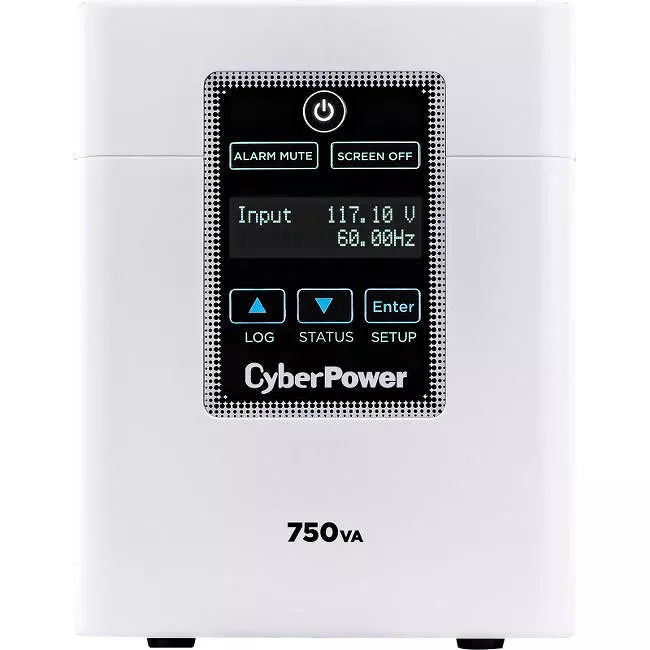

The CyberPower M750L medical-grade UPS delivers clean, consistent backup power to sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care vicinities, the M750L has been tested to meet all UL 60601-1 requirements, and includes hospital-grade plugs and outlets. The M750L also includes a built-in isolation transformer to minimize the current leakage and eliminate line noise, a tip-resistant mini-tower design, replaceable batteries, and a sealed, spray-resistant LCD panel.
About
The CyberPower M750L medical-grade UPS delivers clean, consistent backup power to sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care vicinities, the M750L has been tested to meet all UL 60601-1 requirements, and includes hospital-grade plugs and outlets. The M750L also includes a built-in isolation transformer to minimize the current leakage and eliminate line noise, a tip-resistant mini-tower design, replaceable batteries, and a sealed, spray-resistant LCD panel.
Specifications
General Information
Manufacturer
CyberPower Systems, Inc
Manufacturer Part Number
M750L
Manufacturer Website Address
https://www.cyberpowersystems.com/
Brand Name
CyberPower
Product Series
Hospital/Medical Power
Product Model
M750L
Product Name
M750L Hospital/Medical UPS Systems
Product Type
Line-interactive UPS
Technical Information
Plug/Connector Type
NEMA 5-15P-HG
Receptacle Type
NEMA 5-15R-HG
Receptacle Detail
6 x NEMA 5-15R-HG
Number of Battery & Surge Outlets
6
Overload Protection
Yes
Cord Length
6 ft
Transfer Time
10 ms
EMI/RFI Noise Filter
Yes
Energy Saving
GreenPower UPSâ„¢ Bypass Technology
Application/Usage
Features
Audible Alarm
Power Description
Load Capacity (VA)
750 VA
Load Capacity (Watt)
600 W
Input Voltage
120 V AC
Input Voltage Range
90 V AC - 150 V AC
Input Current
10 A
Output Voltage
120 V AC
Input Frequency
Output Frequency
60 Hz
Waveform Type
Simulated Sine Wave
Surge Energy Rating
1445 J
Circuit Breaker
Yes
Output Power Factor
0.8
Display & Graphics
Display
LCD
Management
Alarm
Battery Mode
Controls/Indicators
Status Indicators
LED Indicators
Power On
Interfaces/Ports
Serial Port
Yes
USB
Yes
USB (HID Compliant) Port
Yes
Battery Information
Number of Batteries
3
Battery Characteristics
Sealed
Battery Chemistry
Lead Acid
Battery Size
12V
Battery Capacity
7000 mAh
Backup/Run Time (Full Load)
12 Minute
Backup/Run Time (Half Load)
30 Minute
Typical Battery Recharge Time
8 Hour
Hot Swappable
Yes
Replaceable Battery
Yes
Environmental Conditions
Minimum Operating Temperature
32°F (0°C)
Maximum Operating Temperature
104°F (40°C)
Storage Temperature
5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation
10000 ft
Physical Characteristics
Color Family
White
Product Color
White
Height
6.7"
Width
8.7"
Depth
17"
Form Factor
Mini-tower
Weight (Approximate)
52.80 lb
Miscellaneous
Package Contents
- M750L Medical Grade 750VA/600W UPS
- User Manual
- USB A+B Type Cable
- Serial Cable
Additional Information
Energy Star
Yes
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
Directly Connected Equipment Guarantee
$400000 Lifetime
