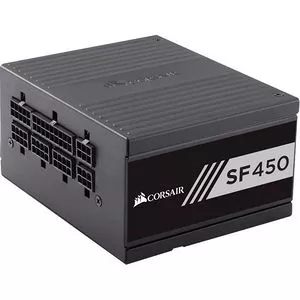

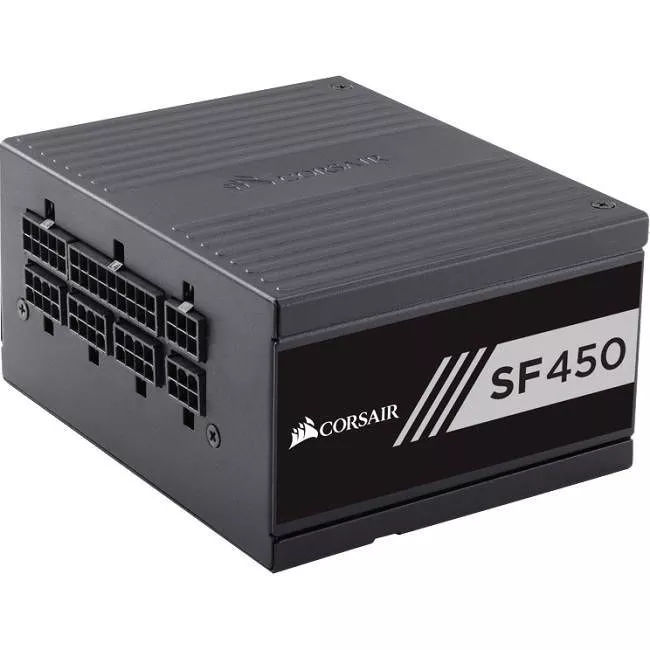

Corsair CP-9020104-NA SF Series SF450 - 450 Watt 80 PLUS Gold Certified High Performance SFX PSU

General Information

Manufacturer: Corsair

Manufacturer Part Number: CP-9020104-NA

Manufacturer Website Address: http://www.corsair.com/us/

Brand Name: Corsair

Product Series: SF

Product Model: SF450

Product Name: SF Series SF450 - 450 Watt 80 PLUS Gold Certified High Performance SFX PSU

Marketing Information:

The small form factor power supply for your big ideas.

SF Series power supplies bring legendary Corsair performance and reliability to the SFX small form factor standard. They have the features found in full-size high performance power supplies, with certification for 80 PLUS Gold efficiency, superior voltage regulation, Zero RPM mode for virtually silent operation, and 105°C All Japanese capacitors for better reliability.

Product Type: Power Supply

Technical Information

Specification Compliance: ATX12V/EPS12V

Efficiency: 90%

Number of Fans: 1

Modular: Yes

Power Description

Input Voltage:

120 V AC

230 V AC

Number of +12V Rails: 1

Output Voltage:

3.3 V DC @ 15 A

5 V DC @ 20 A

12 V DC @ 37.50 A

- 12 V DC @ 300 mA

5 V DC @ 2.50 A

Output Power: 450 W

Physical Characteristics

Form Factor: Internal

Weight (Approximate): 1.90 lb

Miscellaneous

Package Contents:

• SF Series SF450 - 450 Watt 80 PLUS Gold Certified High Performance SFX PSU
• AC Power Cord
• DC Modular Cable Set
• DC Modular Cable Sorage Bag
• Cable Ties
• Corsair Case Badge
• User Manual

Environmentally Friendly: Yes

Environmental Certification:

WEEE

RoHS

China RoHS

T�V

80 Plus Gold

Warranty

Limited Warranty: 7 Year
