MPN: CP-9020031-NA

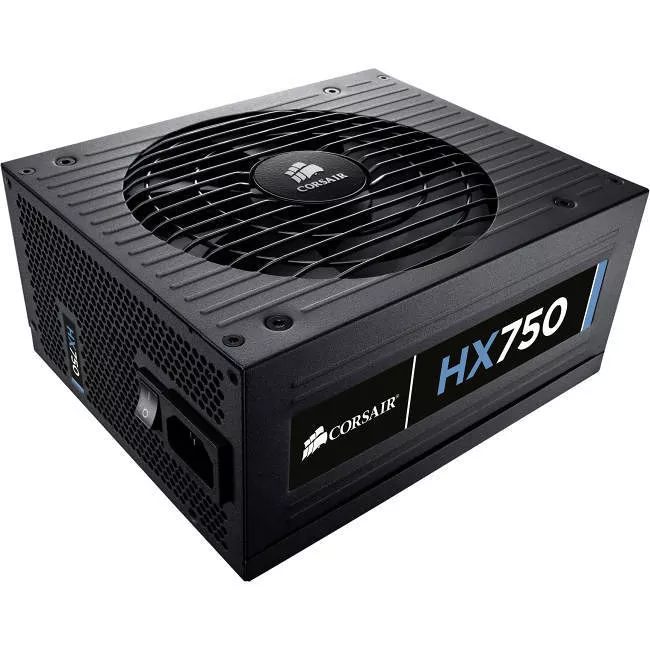

Corsair CP-9020031-NA HX750 ATX12V & EPS12V 750W Power Supply

Highlights

About

Specifications

HX Series Modular Power Supplies: Legendary Performance and Reliability
Quiet operation at low loads, modular cabling and 80 PLUS® Gold efficiency makes HX Series PSUs a great choice for high-performance PCs.

Specifications

General Information

Manufacturer

Corsair

Manufacturer Part Number

CP9020031NA

Manufacturer Website Address

http://www.corsair.com/us/

Brand Name

Corsair

Product Series

Product Model

HX750

Product Name

HX750 ATX12V & EPS12V Power Supply

Product Type

Power Supply

Technical Information

Specification Compliance

ATX12V/EPS12V

Efficiency

90%

Power Factor Correction (PFC)

Active

Number of Fans

Protection Type

Over Current

Over Voltage

Under Voltage

Short Circuit

Modular

Yes

ATI CrossFire Supported

Yes

NVIDIA SLI Supported

Yes

Reliability

MTBF

100000 Hour

Power Description

Number of +12V Rails

Input Voltage Type

Input Voltage

110 V AC

220 V AC

Input Voltage Range

90 V AC - 264 V AC

Output Voltage

3.3 V DC

5 V DC

12 V DC

-12 V DC

5 V

Output Voltage Detail

3.3 V DC @ 25 A

5 V DC @ 25 A

12 V DC @ 62 A

-12 V DC @ 800 mA

5 V @ 3 A

Input Current

10 A @ 110V

5 A @ 220V

Output Current

25 A

62 A

800 mA

3 A

Output Power

750 W

Interfaces/Ports

Receptacles

1 x 20+4pin ATX Motherboard

2 x 8-pin EPS12V Motherboard

4 x 6+2pin PCI-E

12 x Serial ATA

2 x 4-pin SP4 Floppy Drive

8 x 4-pin LP4 Peripheral Device

Physical Characteristics

Form Factor

Internal

Height

3.4"

Width

5.9"

Depth

7.9"

Miscellaneous

Package Contents

HX750 ATX12V & EPS12V Power Supply
Modular Cable Pack
Accessory Bag with Mounting Hardware, Cable Ties and Case Badge
Installation Guide

Environmentally Friendly

Yes

Energy Efficiency Certification

80 Plus Gold

Warranty

Limited Warranty

7 Year
