CMX-M-500B-00
MPN: M-500B

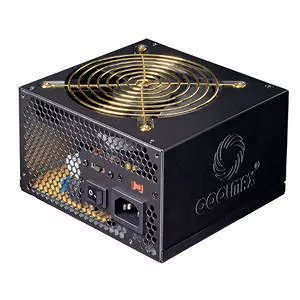

Coolmax M-500B ATX12V & EPS12V 500W Power Supply

Highlights
General Information
Manufacturer
Coolmax Technology, Inc
Manufacturer Part Number
M500B
Manufacturer Website Address
http://www.coolmaxusa.com
Brand Name
Coolmax
Product Model
M-500B
Product Name
M-500B ATX12V & EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Number of Fans
1
Protection Type
  • Over Voltage
  • Under Voltage
    • Power Description
    Input Voltage
    240 V AC
    Input Voltage Range
    100 V AC - 240 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Input Current
  • 9 A @ 110V
  • 4 A @ 220V
    • Output Power
    500 W
    Interfaces/Ports
    Receptacles
  • 1 x 24-pin ATX Motherboard
  • 1 x 4-pin ATX12V Motherboard
  • 1 x 8-pin EPS12V Motherboard
  • 5 x 5-pin Serial ATA
  • 5 x 4-pin LP4 Peripheral Device
  • 1 x 8-pin PCI-E
    • Physical Characteristics
    Product Color
    Black
    Height
    3.3"
    Width
    5.9"
    Length
    5.6"
    Weight (Approximate)
    3.97 lb
    Miscellaneous
    Additional Information
    • Smart cable management
    • Powerful & high-efficiency performance
    Compatibility
    Intel Pentium 4 Xeon Systems
    Certifications & Standards
    • UL
    • CSA
    • TUV
    • FCC
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    1 Year

    Specifications
